ZBWJ-110G(3.5X)
Semi rigid Medium Wall Heat Shrink Tubing ( without adhesive )

【Description】
    ZBWJ-110G (3.5X) NF Semi rigid medium wall heat shrink tubing is made of semi rigid polyolefin through special extrusion process.This product has very good insulation,abrasion resistance and impact resistance performance.It is ideal for applications such as insulation of low and medium cable middle connections and terminations,busbar.Its 3:1 shrink ratio design is found in extensive applications in sealing purposes for electrical connections of different shapes and dimensions.

【Features】

• Flame-retardant outer layer, Ultraviolet-proof
• Excellent sealing, water proof, moisture proof
• Min. shrink temperature: 80 °C
• Min full recovery temperature: 120°C
• Continuous operating temperature: -55°C ~110°C
• Shrink ratio: 3.5:1
• RoHS compliant
• Standard color: black, more colors are available upon request

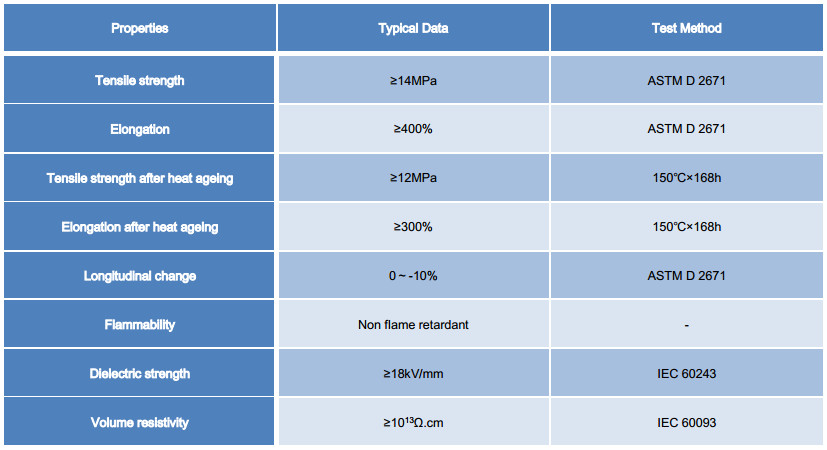

【Technical Performance】

【Structure】

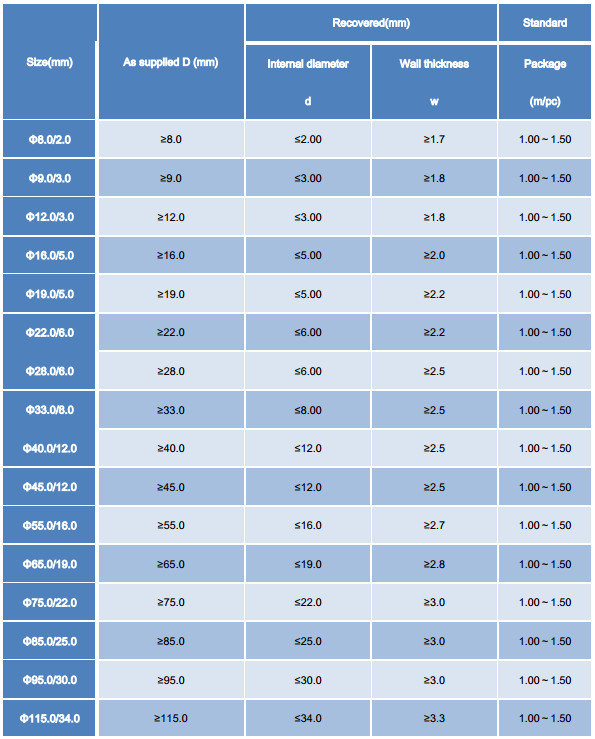

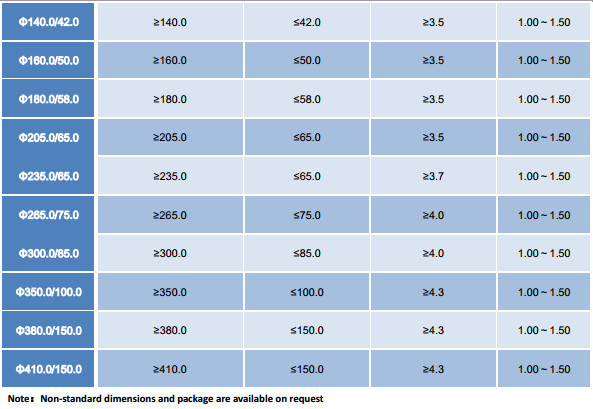

【Dimensions】
