MTVLA
Military Standard Cable Identification Tags
【Description】MTVLA-military grade marker tags are made by means of bombardment and cross-linking of the environmentally friendly polyolefin with high energy electron beams. Marker tags are non-adhesive that can be used to identify EMU for high-speed rails, subways, submarines and aerospace. Market tags are attached on large cables and wire bundles with cable ties and keep permanent identification. The printed characters are amazingly abrasion resistant, even if washing agent or military purpose fuel oil corrosion happens, the color code soundness still meets American military standard SAE-AS 81531 and MIL-STD-202F/215J and keeps permanent identification.
【Features】
- Halogen free materials, ideal for identifying purposes in electronics/electrical power, communications, architectural industries
- Not necessary to disconnect the electrical return circuit when installing, dismantling, or maintenance
- Using standard cable ties, no extra work required, easy to handle
- Temperature resistance, rated temperature, 135°C
- High flame resistance, VW-1
- RoHS compliant
- Permanent identification, not melting in high temp, not turning fragile in low temp, resistant to scrape, rub, abrasion
- Computer-printable, any character and logo are easy to design.
【Rated Temperature】
- Continuous operating temperature: -55°C~135°C/-67°F~+275°F
- Max. storage and transportation temp.: ≤+50°C/+122°F
【Standards】
- AMS-DTL-23053/5, Compatible UL224
- Color code soundness: SAE-AS 81531 and MIL-STD-202F/215J
【Structure】

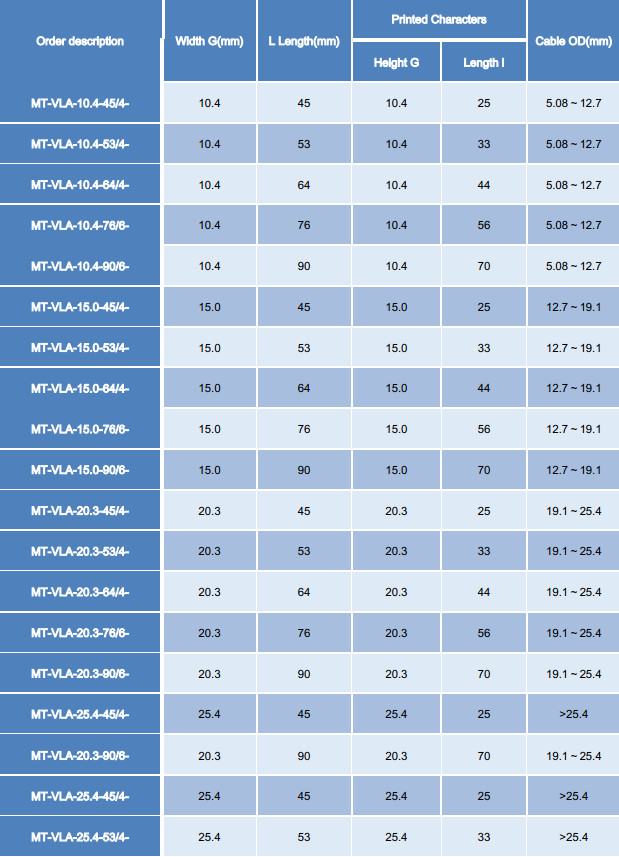

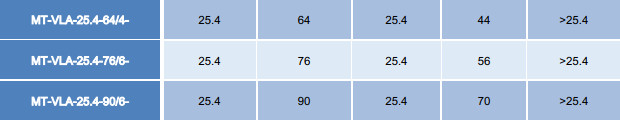

【Dimensions】

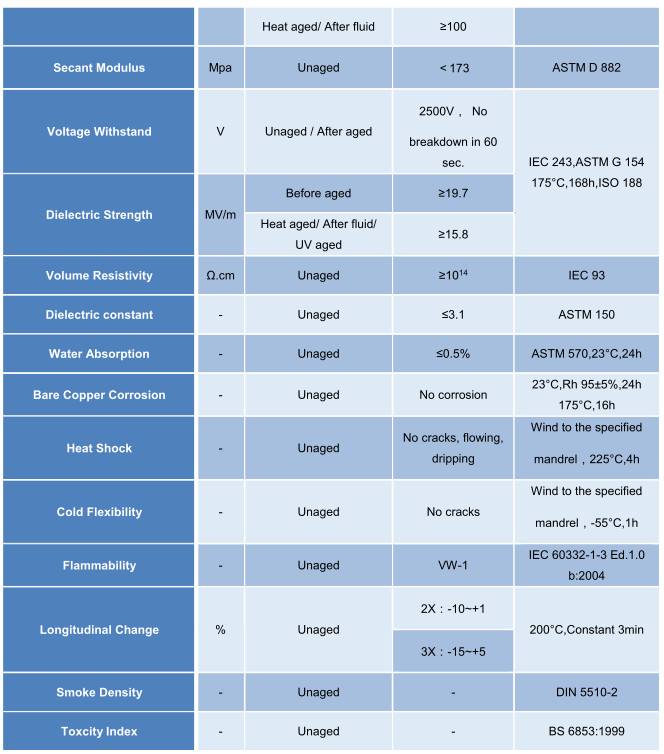

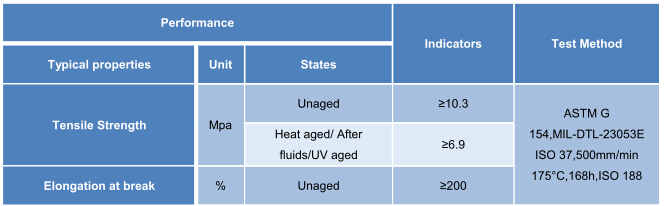

【Technical Performance】
