MSVLN
Halogen-free, Low smoke, Highly Flame Retardant, Heat Shrinkable Wire Identification Sleeves



HNF Halogen-free, Low smoke, Highly Flame Retardant, Heat Shrinkable Wire Identification SleevesDescription
MSVLN(HNF) series is the halogen free, low smoke, highly flame retardant cable and wire identification sleeves, which is designed to meet the requirements of EMU for high-speed rails, subways and motor train units. It is made of the polyolefin by means of bombarding and cross-lining of high energy electron beam. Flammability, smoke density, toxicity index, electrical, physical and chemical performances conform to the standards of international motor vehicles. The printed characters are amazingly abrasion resistant, even if the words have encountered detergent or corrosion of military oil before and after shrinking. The soundness of words conforms to the requirements of SAE-AS 81531 and MIL-STD-202G/215K and keeps permanent identification.

Features

  • Halogen free low smoke emission materials, designed ideally for motor train unit, rail transit, aerospace, and shipbuilding industrials
  • Standard temperature resistance, rated temperature 125°C
  • Highly flame retardant, low smoke emissive; meets international locomotive relevant standards
  • ROHS compliant; meets SONY SS-00259
  • High reliability, permanent identification
  • Heat sensitive, swift recovery
  • Computer printable, any characters and logo are easy to design

Rated Temperature

  • Continuous operating temperature-55°C~125°C/-67°F~257°F
  • Min. shrink temperature: 85°C/185°F
  • Full recovery temperature: 115°C~200°C/239°F~392°F, 8~3minutes
  • Max. storage and transportation temperature: ≤+50°C/122°F
Standards
  • Raw material Standards: ASTM D 2671/DIN5510-2
  • Color code soundness: SAE-AS 81531 and MIL-STD-202F/215J
  • British and French Smoke Poison Standards: BS 6853/NF F 16-101

Structure

HNF Halogen-free, Low smoke, Highly Flame Retardant, Heat Shrinkable Wire Identification Sleeves



Dimensions

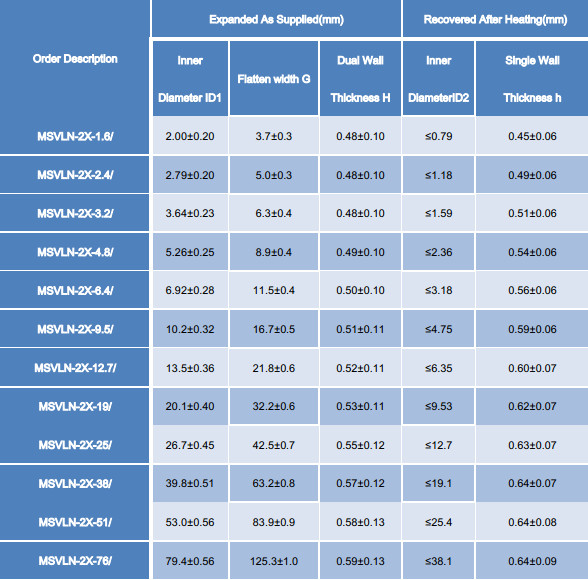

  Shrink Ratio 2:1

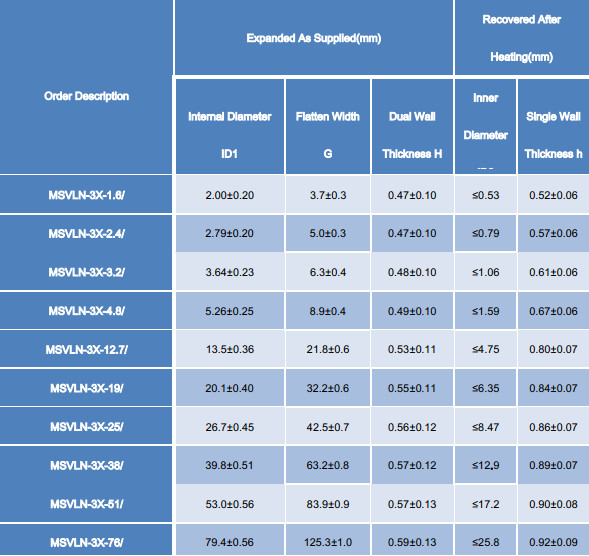

  Shrink Ratio 3:1

【Standard Package Data


Technical Performance
