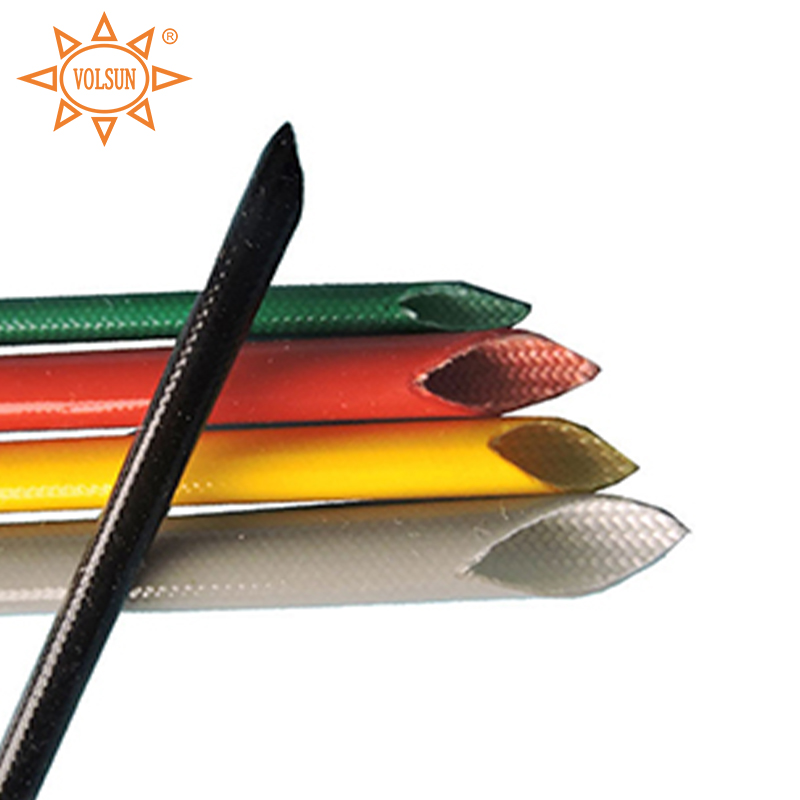

High Voltage Flexible Silicone Fiberglass Sleeve


Description

Silicone rubber fiberglass sleeve is made of alkali-free fiberglass woven into a tube, coated with a layer of silicone rubber composite material on the outer layer of the tube, and then heated and cured. With high dielectric strength, good flexibility, heat resistance aging, flame retardant, temperature resistance up to 200℃. Widely used in household electrical appliances, motors, electromechanical equipment, vehicles, ships and other circuit insulation protection.




Feature
Operating temperature:-40°C~200°C
RoHS compliant
Standard color: White, red, yellow, blue, green, black,other colors on quest

Technical Performance



Type
Breakdown voltage(V) Volume resistivity

(Ω.cm)
Temperature

resistance


Flammability
Average Minim


4.0KV
UL94
4000                        3000                             1011                                         -40℃~200℃
HB Grade


7.0KV


7000


5000


1011


-40℃~200℃
UL 94

HB Grade



















Structure





Dimensions


  ID(mm)     Wall Thickness(mm) Packaging
Size   Tolerance 4000V   7000V (Roll/M)
Φ0.5   -0.1~+0.20 0.40±0.1   0.45±0.1 200
Φ0.8   -0.1~+0.20 0.40±0.1   0.45±0.1 200
Φ1.0   -0.1~+0.20 0.40±0.1   0.45±0.1 200
Φ1.5   -0.1~+0.25 0.45±0.1   0.50±0.1 200
Φ2.0   -0.1~+0.25 0.45±0.1   0.50±0.1 100
Φ2.5   -0.1~+0.25 0.45±0.1   0.50±0.1 100
Φ3.0   -0.1~+0.25 0.45±0.1   0.50±0.1 100
Φ3.5   -0.1~+0.35 0.50±0.1   0.55±0.1 100
Φ4.0   -0.1~+0.35 0.50±0.1   0.55±0.1 100
Φ4.5   -0.1~+0.35 0.50±0.1   0.55±0.1 100
Φ5.0   -0.1~+0.35 0.50±0.1   0.55±0.1 100
Φ5.5   -0.1~+0.40 0.55±0.1   0.60±0.1 100
Φ6.0   -0.2~+0.40 0.55±0.1   0.60±0.1 100
Φ7.0   -0.2~+0.50 0.55±0.1   0.60±0.1 100
Φ8.0   -0.2~+0.50 0.55±0.1   0.65±0.1 50
Φ9.0   -0.2~+0.50 0.55±0.1   0.65±0.1 50
Φ10.0   -0.2~+0.70 0.65±0.15   0.70±0.15 50
Φ11.0   -0.2~+0.70 0.65±0.15   0.70±0.15 50
Φ12.0   -0.2~+0.70 0.65±0.15   0.70±0.15 50
Φ13.0   -0.3~+0.80 0.70±0.15   0.75±0.15 50
Φ14.0   -0.3~+0.80 0.70±0.15   0.75±0.15 50
Φ15.0   -0.3~+0.80 0.70±0.15   0.75±0.15 50
Φ16.0   -0.3~+0.80 0.70±0.15   0.75±0.15 50
Φ17.0   -0.5~+1.00 0.75±0.20   0.80±0.20 30
Φ18.0   -0.5~+1.00 0.75±0.20   0.80±0.20 30
Φ19.0   -0.5~+1.00 0.80±0.20   0.85±0.20 30
Φ20.0   -0.5~+1.00 0.80±0.20   0.85±0.20 30
Φ22.0   -0.5~+1.00 0.85±0.20   0.90±0.20 30
Φ25.0   -0.5~+1.00 0.95±0.20   1.05±0.20 30
Φ30.0   -0.5~+2.00 1.05±0.25   1.15±0.25 30



























































Note: Non-standard dimensions and packages also available on your request.
