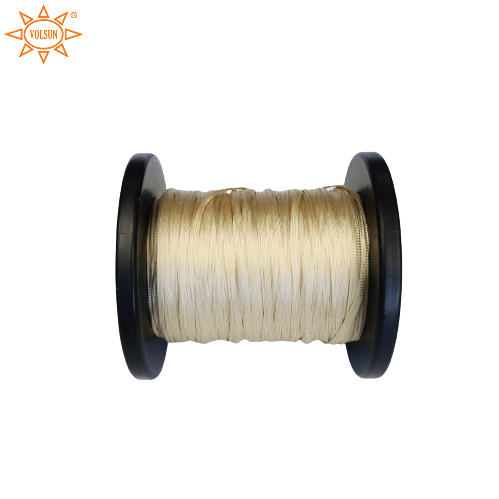

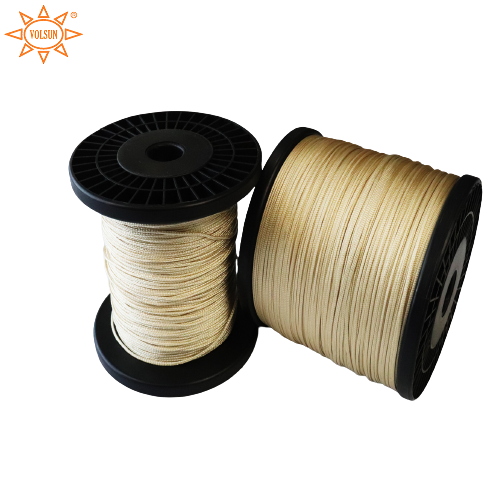

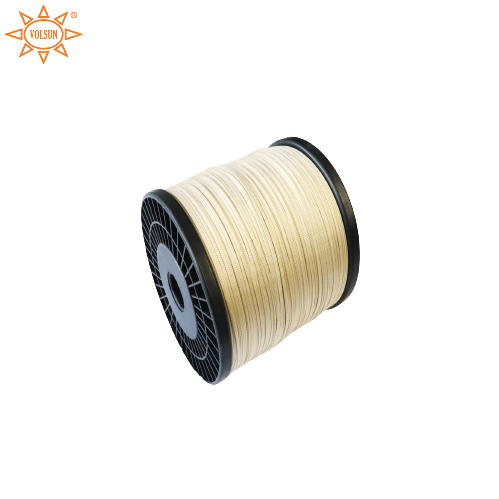

Volsun PPS Lashing Rope
Description
PPS lashing rope is woven from polyphenylene sulfide fiber material, which has high temperature resistance, corrosion resistance and high flame retardant performance. It is widely used for wire harness bundling protection in new energy motors, electromechanical equipment, vehicles and other fields.
Features
- Operating temperature：-70℃～200℃
- Halogen-free, self-extinguishing once away from fire
- Good chemical resistance
| Item | Technical Data | Test Standard |
| Appearance | No burr, No yarn fall off | Visual Inspection |
| Breaking strength | ≥210N（Φ1.3mm） | GB-T 8834-2016 |
| Elongation at break | ≥20% | ISO 2062 |
| High temperature resistance | Breaking strength retention≥85% | 200±3℃，72h |
| Dry heat shrinkage | ≤10%（Diameter 1.5mm） | 180℃，10min |
| Flame retardant rating | V-0 | UL94 |
| Low temperature performance | No crack after bending under -70℃ | IEC60684 |
| Resistant to gearbox oil | The tensile strength shall be at least 70% of the initial value |
T/CEEIA 415-2019 8 cycles：155°C，40h；-45°C，8h |

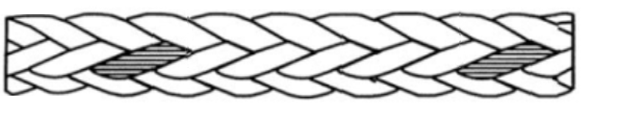

Structure
Dimension
| Diameter（mm） | Tolerance（mm） | Package length（m） |
| 1.0 | ±0.1 | 800 |
| 1.3 | ±0.2 | 500 |
| 1.5 | ±0.2 | 500 |
| 1.8 | ±0.2 | 300 |
