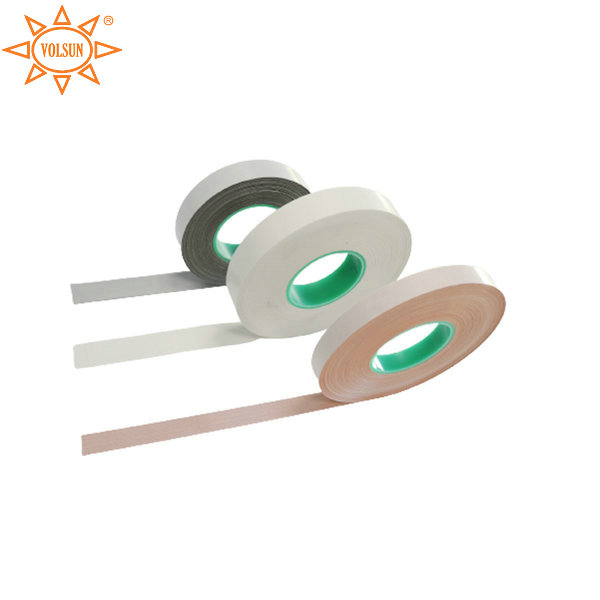

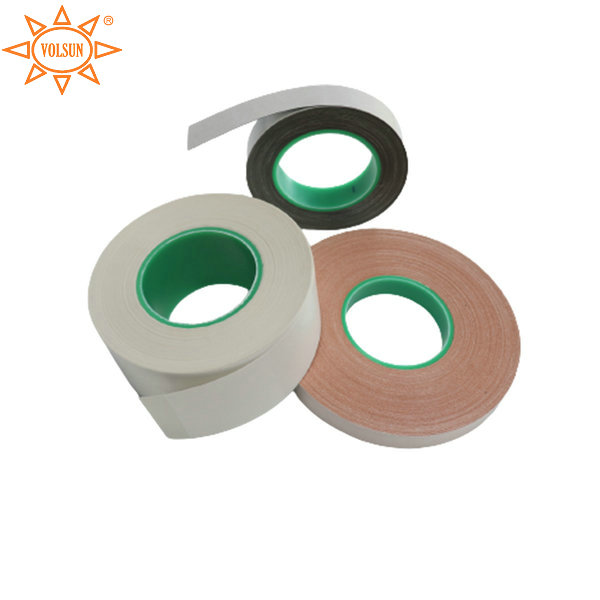

Silicon Rubber High Temperature Insulation Ceramic Composite Electrical Tape
Description
High temperature insulation tape is mainly made of ceramic silicone rubber and refractory reinforcing fiber. It is a high-strength flexible composite product with good fire resistance, high temperature resistance and excellent high temperature insulation. It can resist flame ablation at 1000°C and prevent the flame from spreading to other areas. Can effectively isolate most chemical solvents, is a material specially designed for heat protection and electrical insulation protection to increase the safety of battery packs in electric vehicles and other energy storage systems.
Features
- RoHS compliant
- Color: White, Black, Orange
- Low smoke, low flame, no smoke toxicity during combustion, excellent ozone resistance and anti-ultraviolet aging performance
- Encrusted into a ceramic-like structure at high temperatures or in flames, giving it excellent electrical insulation
Technical Performance
| Item | Index value | Test Standard |
| Density | ≤1.70g/cm3 | GB/T 533-2008 |
| Tensile strength | ≥15MPa | GB/T 528-2009 |
| Tear strength | ≥40KN/m | GB/T 529 |
| Breakdown strength | ≥22kV/mm | GB/T 1695 |
| Volume resistivity | 1.0×1013（Ω·cm） | GB/T 1692 |
| Insulation resistance（800℃，1min） | ＞0.3MΩ | GB/T 31838.7 |
| Flame retardancy | VTM-0 | UL94 |
| Residue | ＞80% | TG Analysis |
| Thickness（mm） | Tolerance（mm） | Package（M/Roll） |
| 0.25 | ±0.08 | 100 |
| 0.35 | ±0.08 | 100 |
| 0.55 | ±0.08 | 100 |
