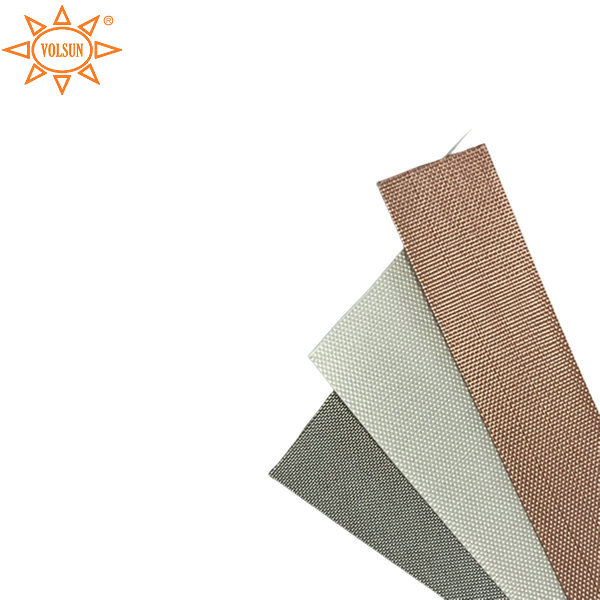

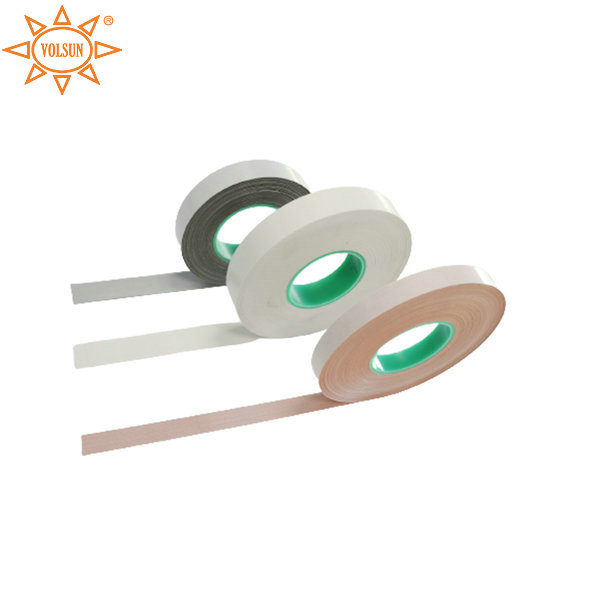

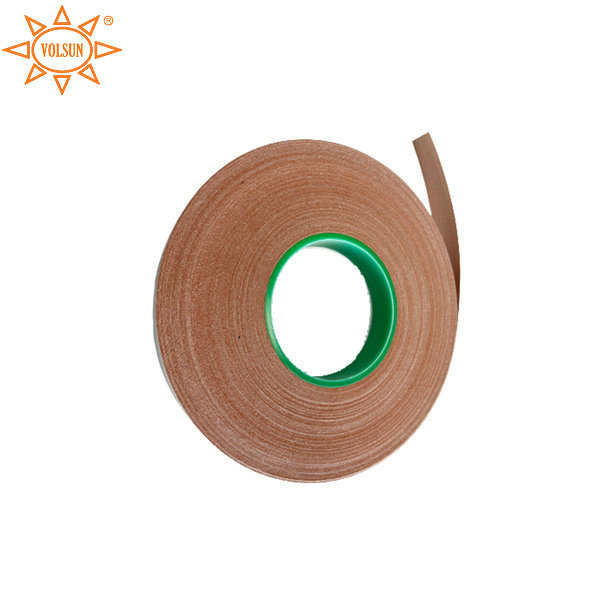

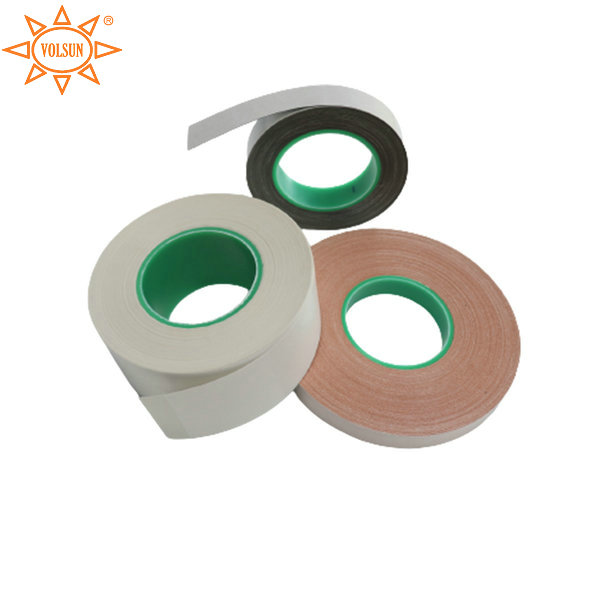

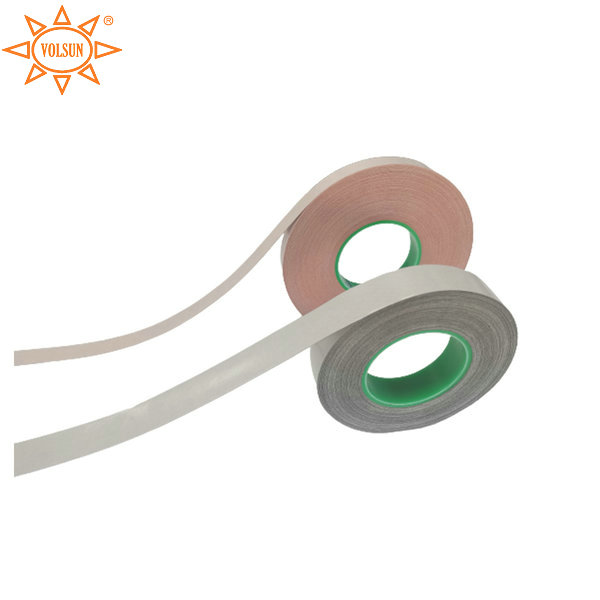

High Temperature Ceramic Composite Silicon Rubber Electrical Fireproof Tape


Description

High temperature insulation tape is mainly made of ceramic silicone rubber and refractory reinforcing fiber. It is a high-strength flexible composite product with good fire resistance, high temperature resistance and excellent high temperature insulation. It can resist flame ablation at 1000°C and prevent the flame from spreading to other areas. Can effectively isolate most chemical solvents, is a material specially designed for heat protection and electrical insulation protection to increase the safety of battery packs in electric vehicles and other energy storage systems.




Features
  • RoHS compliant
  • Color: White, Black, Orange
  • Low smoke, low flame, no smoke toxicity during combustion, excellent ozone resistance and anti-ultraviolet aging performance
  • Encrusted into a ceramic-like structure at high temperatures or in flames, giving it excellent electrical insulation


Technical Performance

Item      Index value Test Standard
Density ≤1.70g/cm3 GB/T 533-2008
Tensile strength ≥15MPa GB/T 528-2009
Tear strength ≥40KN/m GB/T 529
Breakdown strength ≥22kV/mm GB/T 1695
Volume resistivity 1.0×1013(Ω·cm) GB/T 1692
Insulation resistance(800℃,1min) >0.3MΩ GB/T 31838.7
Flame retardancy VTM-0 UL94
Residue >80% TG Analysis



Dimension

Thickness(mm) Tolerance(mm) Package(M/Roll)
0.25 ±0.08 100
0.35 ±0.08 100
0.55 ±0.08 100

Note: Special size and packaging can be customized on request.



Welcome to contact with us if any needs via volsun2006@szvolsun.com
