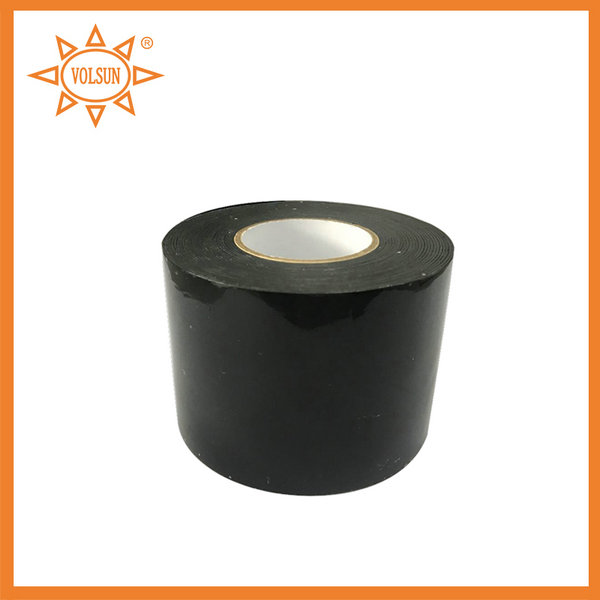

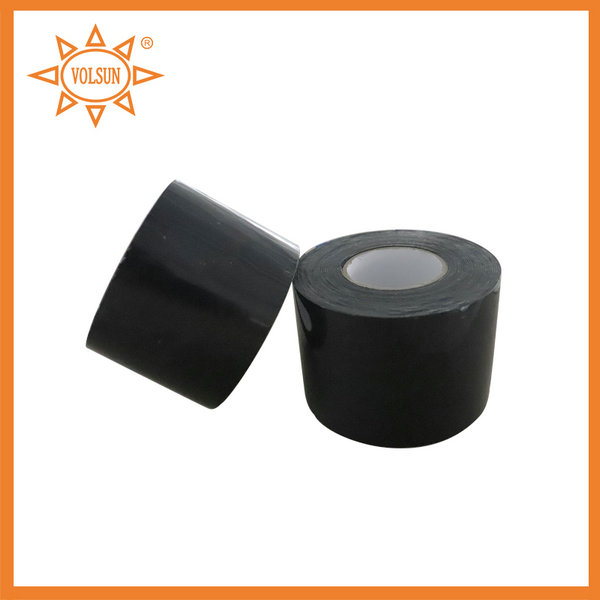

Arc-resistant Electric Fireproof Tape for Cable Joint



Description
FST8077 Arc-resistant flame-retardant tape (flame-retardant tape for cable) is a special tape with two-way fire resistance, heat insulation and arc resistance characteristics. The flame retardant oxygen index is much higher than similar international products. The quality is excellent and the industry leader is widely used. In the fields of power, communications, fire protection, etc., it can be used for the protection of the entire cable, and it can also be used for key protection of weak parts such as joints. Controlling the fire hazard locally can greatly reduce the loss, which is unmatched by the traditional fire blocking concept.





Feature

      Standard color:Black
      Fire protection of high and low voltage cables in cable tunnels and substations
      Fire and explosion protection of cable middle joint
      Fire protection of cables in communication equipment room
      Fire protection of fire pipes and cables


Technical Performance


Properties Index Test Method

Tensile strength ≥3.0MPa GB/T 2951.11-2008
Elongation at break ≥500% GB/T 2951.11-2008
Low temperature stretching(-15℃±2℃) ≥60% GB/T 2951.11-2008
Self-adhesive No looseness GB 478-2004 5.10
Water resistance (soak for 15 days) No blistering, wrinkling, delamination, cracking, etc. GB 478-2004 5.6
Acid, alkali and salt resistance (soaked for 7 days) No blistering, wrinkling, delamination, cracking, etc. GB 478-2004 5.7~5.9
Oxygen Index ≥45 ASTM D 2863
Flame retardancy (carbonized height) ≤2.50 GA 478-2004 5.11



Dimension
Specification Width(mm) Thickness(mm) Length(m)

FST8077-40 40±1.5 0.70±0.1 5
FST8077-60 60±1.5 0.70±0.1 5
FST8077-80 80±1.5 0.70±0.1 5
