DBRS-150G(2X)
150°C High Temperature Flame Retardant Heat Shrink Tubing

150°C High Temperature Flame Retardant Heat Shrink TubingDescription

150 ° C high temperature flame retardant heat shrinkable tubing, made of radiation cross-linked polyolefin material, has excellent physicochemical electrical properties. Typical applications includeinsulation of electrical connections, wire splices orterminals in high temperature conditions, rust and corrosion resistance for the welding point, mechanical and wiring harness protection in electronics,communications, automotive, marine, aircraft manufacturing and other fields.



Features

  • Meets UL class of high temperature integrated tube compatible AMS-DTL = 23053/5 and UL 224 , CAN /CSA C22.2 NO198.1 -99
  • Heat shrink ratio : 2:1
  • Low smoke generation , flexible, flame retardant
  • Min. shrink temperature :84°C
  • Min. full recovery temperature :120°C
  • Continuous operating temperature : -55°C ~ 150°C
  • RoHs compliant
  • Standard colors: Black. More colors are available upon request.

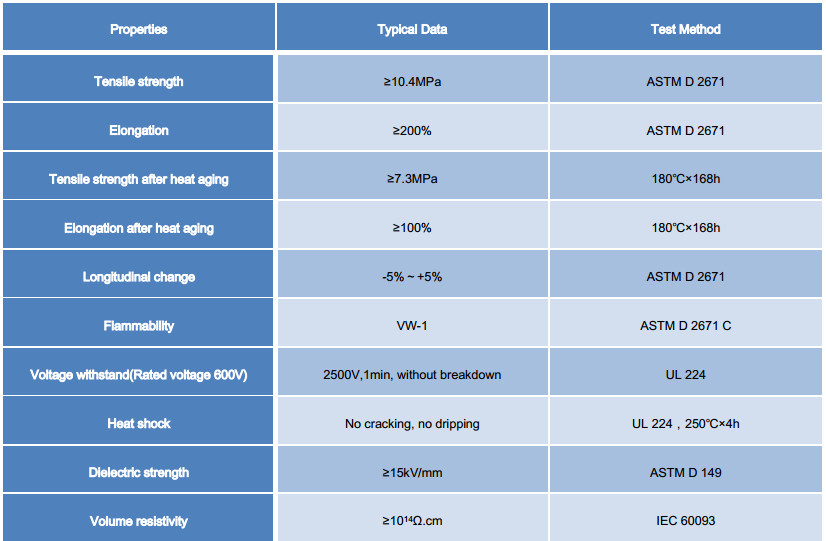

Technical Performance



150°C High Temperature Flame Retardant Heat Shrink Tubing

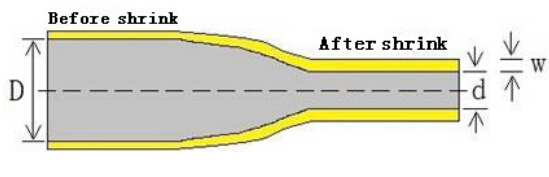

Structure



150°C High Temperature Flame Retardant Heat Shrink Tubing

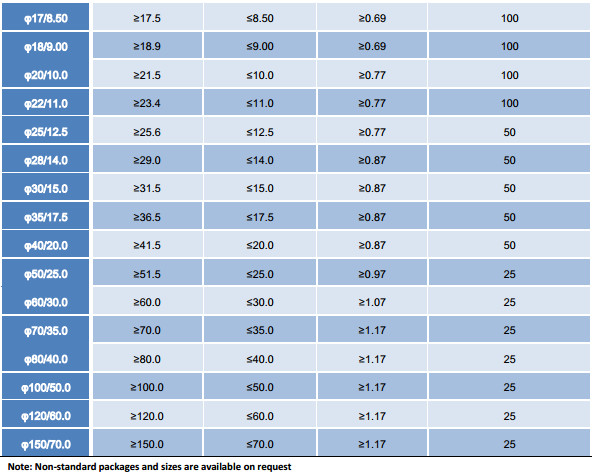

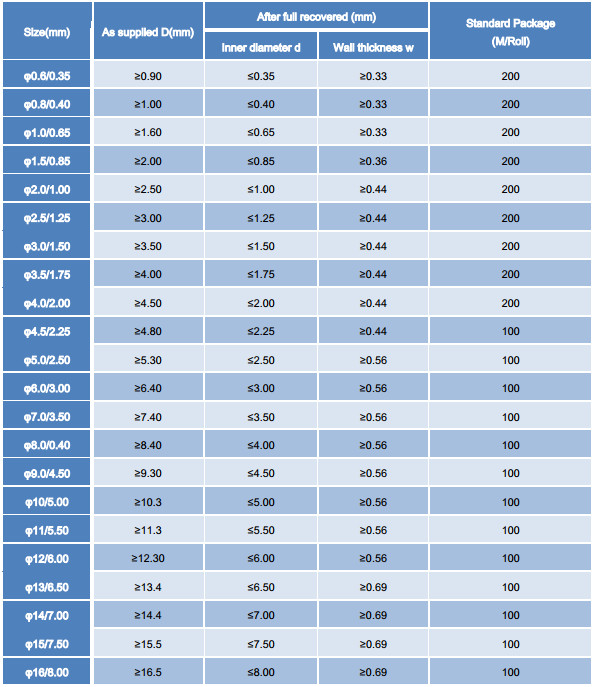

Dimensions




150°C High Temperature Flame Retardant Heat Shrink Tubing
150°C High Temperature Flame Retardant Heat Shrink Tubing
