DBRS-135G(2X)(3X)(4X)
Military Standard 135 °C (2X) (3X) (4X) Flame Retardant Heat Shrink Tubing

Military Standard 135 °C (2X) (3X) (4X) Flame Retardant Heat Shrink TubingDescription

135 ° C (2X) flame retardant heat shrinkable tube,made of radiation cross-linked polyolefin,has excellent physicochemical and electrical properties.Typical applications include insulation of electrical connections,wire splices or terminals, rust and corrosion resistance for the soldered connections or joints,mechanical and wiring harness protection in electronics,communications,automotive,marine,aircraft manufacturing and other fields.



Features

  • Meets UL 224, CAN / CSA C22.2 NO198.1 -99
  • Heat shrink ratio: 2:1, 3:1, 4:1
  • Halogen-free, low-smoke emission , non-toxic , flexible , flame retardant , swiftly shrinking
  • Min shrink temperature: 70 °C
  • Min full recovery temperature: 120 °C
  • Continuous operating temperature : -55 °C ~ 135°C
  • Environmental standards: RoHS, IPC/JEDE C-J-STD-709 Class H material
  • Standard colors: Black, White, Red , Yellow ,Green, Blue。 More colors are available upon request.

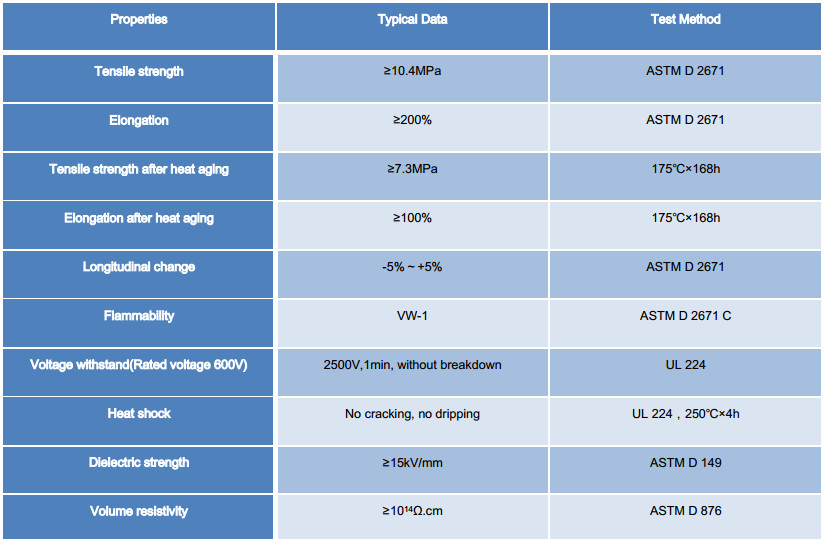

Technical Performance

Military Standard 135 °C (2X) (3X) (4X) Flame Retardant Heat Shrink Tubing



Structure



Military Standard 135 °C (2X) (3X) (4X) Flame Retardant Heat Shrink Tubing

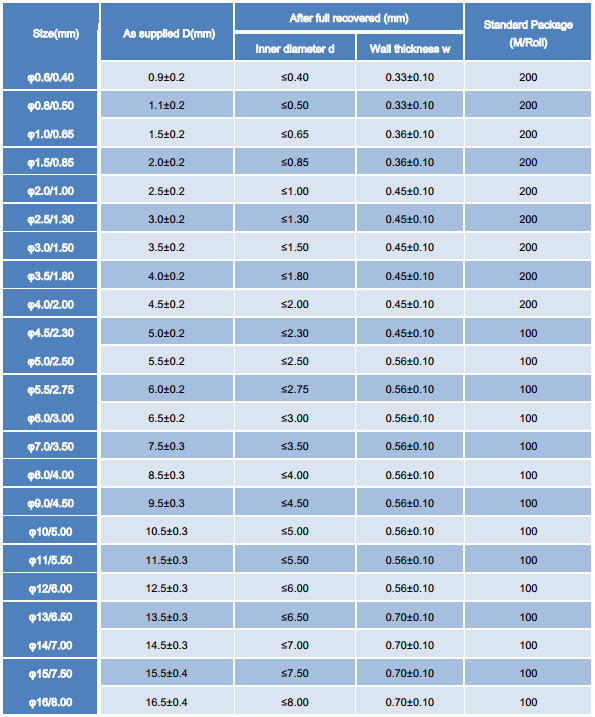

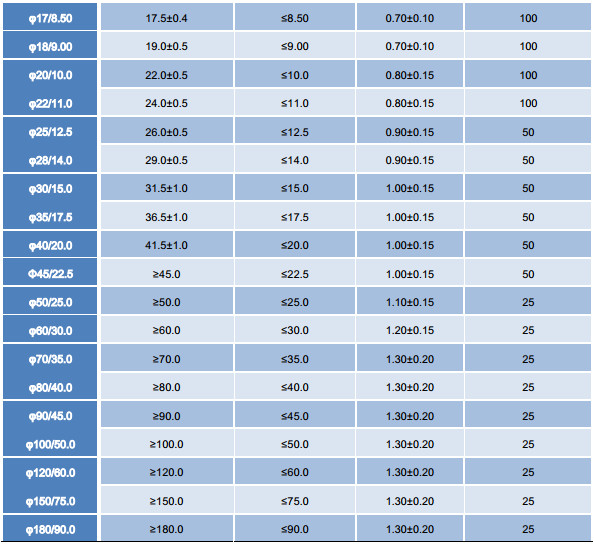

Dimensions

Military Standard 135 °C (2X) (3X) (4X) Flame Retardant Heat Shrink Tubing

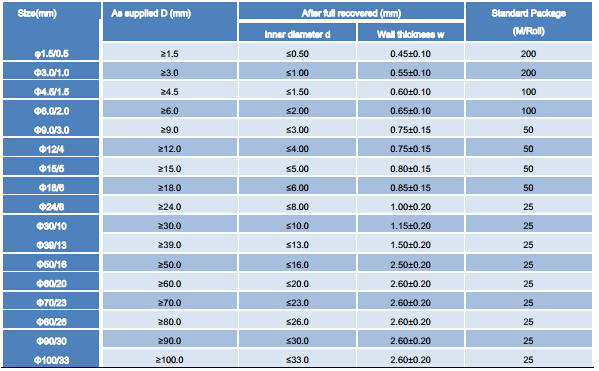

Shrink Ratio:3:1

Military Standard 135 °C (2X) (3X) (4X) Flame Retardant Heat Shrink Tubing

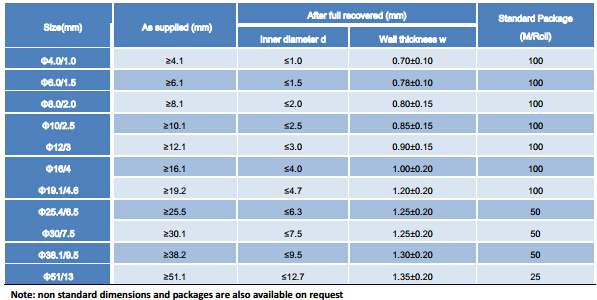

Shrink Ratio:4:1

Military Standard 135 °C (2X) (3X) (4X) Flame Retardant Heat Shrink Tubing
