DBRS-125HH(2X)
Halogen-free Flame Retardant Heat Shrinkable Tubing(Without red Phosphorus)

【Description】
    Halogen-free fire retardant heat shrinkable tubing,made of radiation cross-linked polyolefin,is designed with excellent physicochemical and electrical properties.Typical applications include insulation of electrical connections or wire splices, rust and corrosion resistance for the soldered joints or connections,mechanical and wiring harness protection and insulation in electronics,communications,automotive, marine,aircraft manufacturing and other fields.

【Features】

• Meets NF f 16-101, UL224
• Heat shrink ratio : 2:1
• Halogen-free , low-smoke generations , non-toxic , flexible , fire retardant
• Min. shrink temperature : 84 °C
• Min. full recovery temperature :120 °C
• Continuous operating temperature : -55 °C ~ 125°C
• Environmental standards : RoHs ,IPC/JEDEC-J-STD-709
• Black, White, Red , Yellow ,Green, Blue. More colors are available upon request.



【Technical Performance】

【Structure】

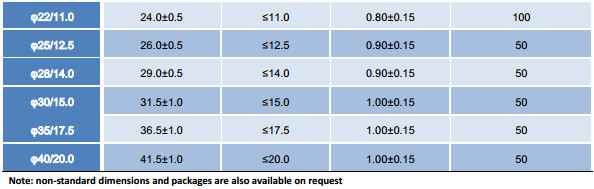

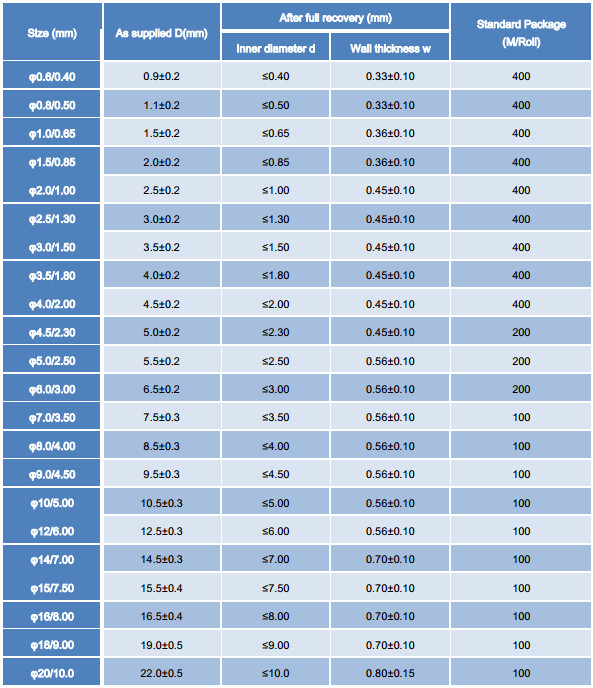

【Dimensions】
