TZRS-PTFE260 (1.7X 4X)
Teflon PTFE Heat Shrink Tubing




Description
TZRS-PTFE260(1.7X 4X) is a highly flame retardant heat shrinkable tubing manufactured from modified PTFE Provides insulation and mechanical protection in severe chemical and thermal environments Thin wall, high shrink ratio, flexible and transparent Major uses: electrical insulation, protection of electronic components, covering of hydraulic hose and couplings, prevention against contamination and corrosion High mechanical strength and extremely low coefficient of friction make it ideal for reducing damage to bearing shafts etc.




Features

  • Continuous operating temperature: -65°C~260°C
  • Resistant to corrosion, strong acid, strong base, chemical reagents, and oil etc
  • Excellent Dielectric Insulation Properties
  • Excellent electrical performance that does not change with the temperature and frequency
  • Excellent mechanical performance, shock proof, high elasticity
  • Ultra low friction coefficient, highly flame retardant
  • Flammability: VW-1
  • Shrink Ratio: 1.7:1, 4:1
  • Standard color: clear/transparent

Structure



Dimensions

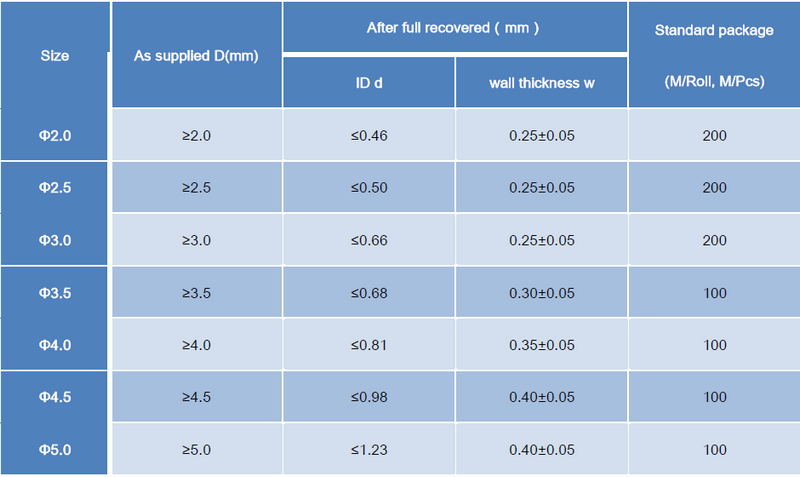

2:1 Shrinkage

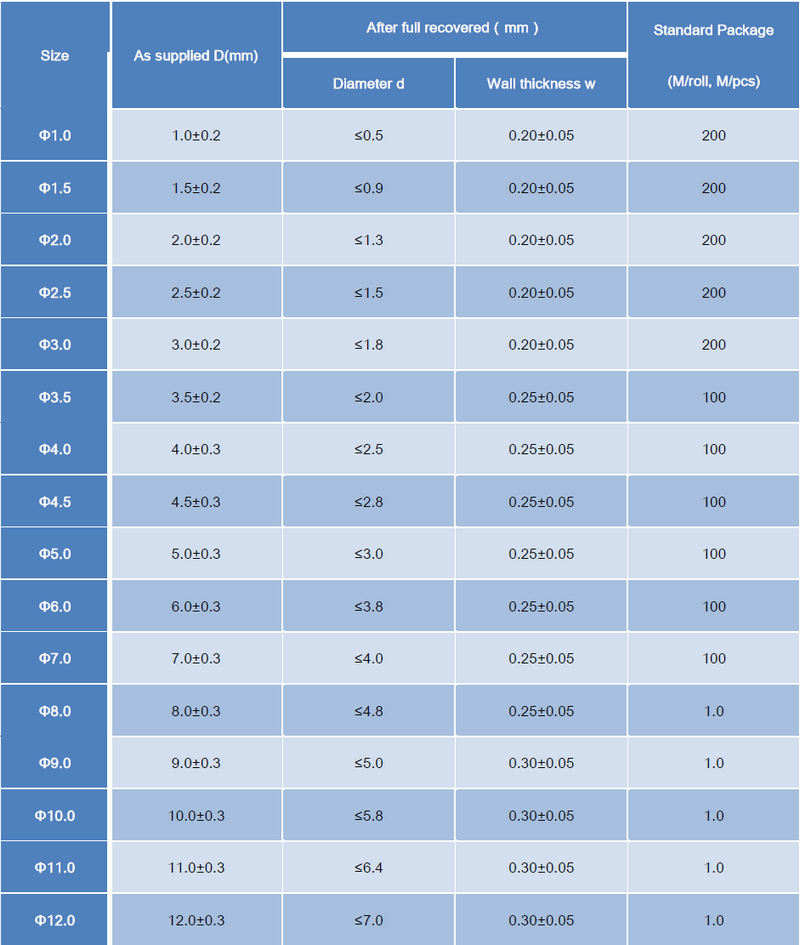

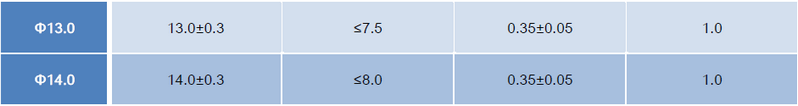

4:1 Shrinkage

    Note: Non-standard dimensions and package are available on request

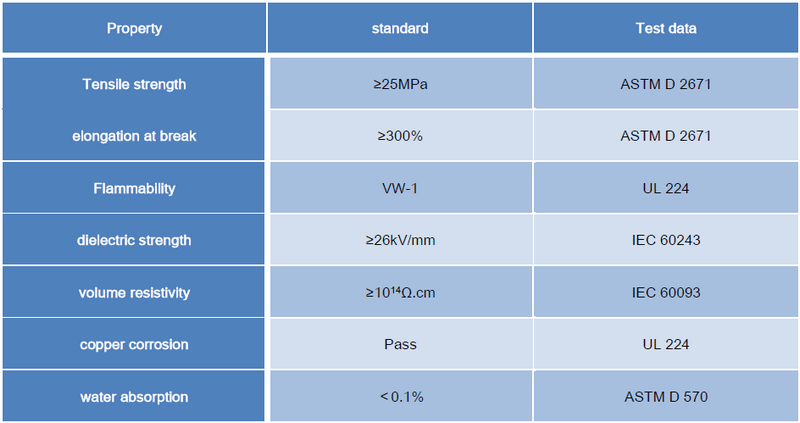

Technical Performance
