MPRS-MV
Medium Voltage Heat Shrink Busbar Sleeve




Description
MPRS-MV Medium Voltage Heat shrink busbar sleeve, a kind of continuous tube shape material made of radiation cross-linked polyolefin, carry excellent insulating performance. Typical applications include insulation of electrical bus bar rated up to 24KV or higher voltage ratings, rectangular, square and round bus bars, inline bolted connections of rectangular bus bars, copper or aluminum bus bars, metal-clad switchgear, metal-enclosed bus bar, substation switchgear etc.



Features

  • Shrink ratio: 2.5:1
  • Tracking resistant, low smoke emitting, high strength, flexible, flame retardant
  • Min. shrink temperature: ≥84°C
  • Min. full recovery temperature: ≥120°C
  • Continuous operating temperature: -55°C~125°C
  • RoHS compliant
  • Standard Package :Black, White, Red ,Yellow, Green ,Blue. More colors are available upon request.

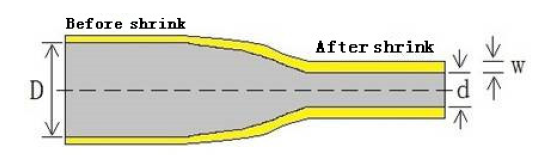

Structure



Dimensions



    Note: Non-standard dimensions and package are available on request

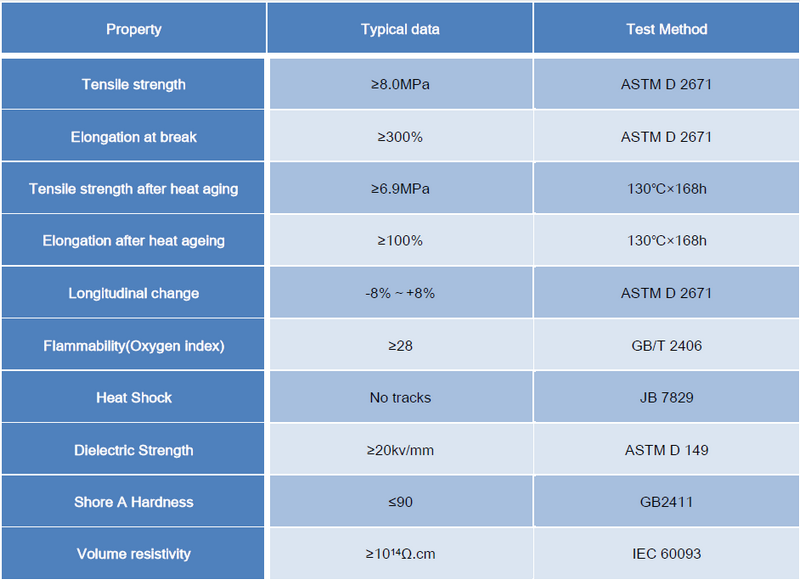

Technical Performance
