SBRS-135G(3X)(4X)
Military Grade Adhesive-lined Dual Wall Heat Shrink Tubing

Description

SBRS-135G (3X) (4X) is a cross-linked polyolefin tube that is extruded with an inner layer of adhesive. The inner layer of adhesive, with superior sealing capability, is also a buffer against mechanical strain. Dual wall heat shrink tubing is designed to provide superior sealing against water, corrosive gas and chemicals. Typical applications include environmental sealing of in-line splices, sealing and strain relief of connectors and terminals, abrasion protection and electrical insulation of automotive wiring harness splices and valuable components, fleet & marine sealing & protection and wire bundling etc.




Features

  • Standard:AMS-DTL-23053/4,UL 224
  • Shrink ratio:3:1,4:1
  • Flame retardant outer layer, environment friendly, UV resistant
  • Shrink temperature:80°C~120°C
  • Continuous operating temperature:-55°C~125°C
  • RoHS compliant
  • Standard color: Black.

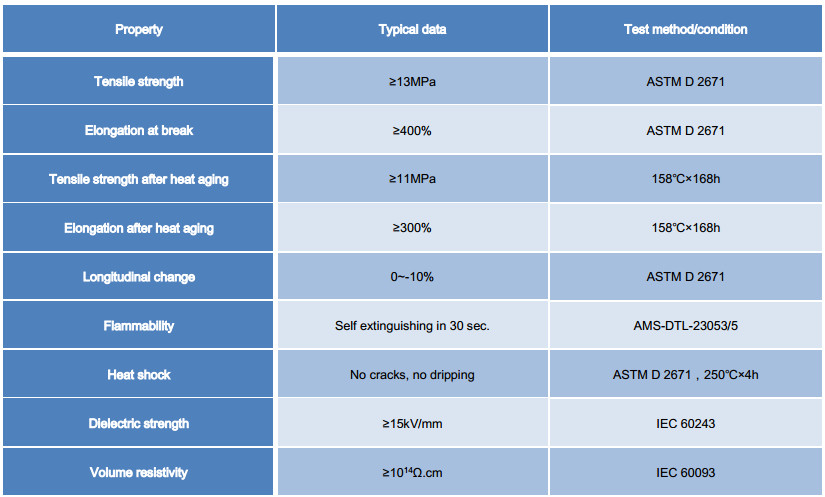

Technical Performance




Structure



Dimensions

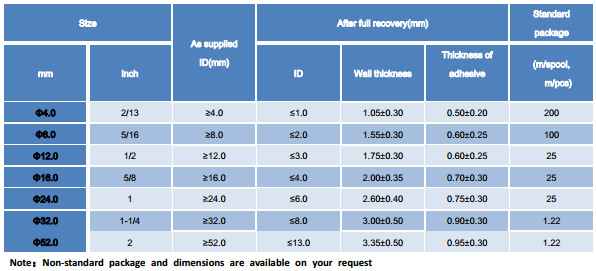

Shrink Ratio:3:1

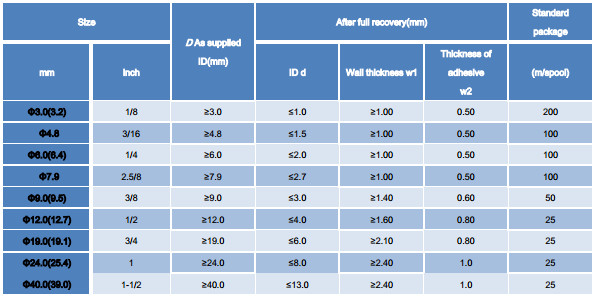

Shrink Ratio:4:1
