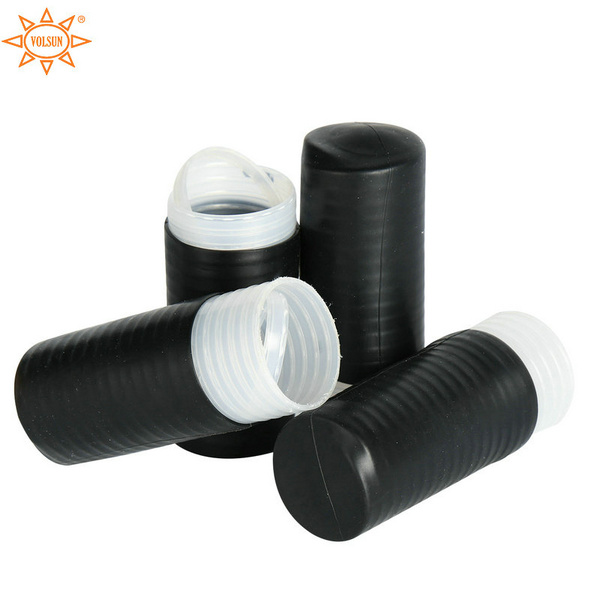

Volsun VS-CAP-SILIC Series Silicone Rubber Material Cold Shrink End Cap
Product Description

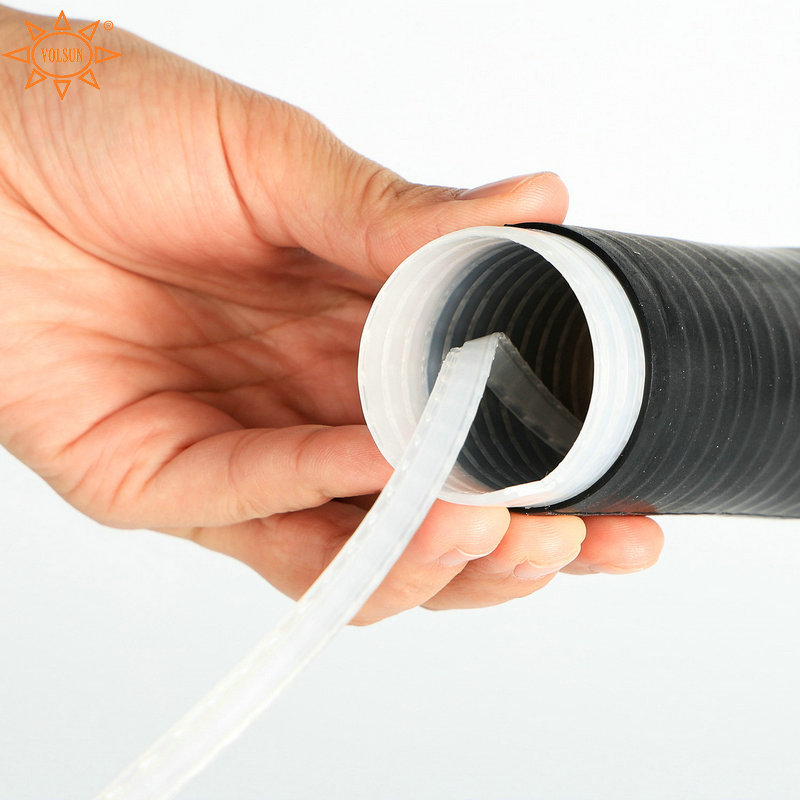

The silicone cold shrink end cap is made from high-quality silicone rubber material and is pre-expanded on a support tube made of strip plastic. This type of cap is easy to install in the field without the need for heating; simply slip the cap over the end of the cable and remove the support strip. The inherent excellent elastic memory function of the silicone rubber allows the cap to form a stable and lasting insulating seal at the end of the cable after it has shrunk into place. This characteristic makes the cold-shrink cap particularly suitable for use in the storage and on-site construction areas of low and high-voltage cables, enabling rapid insulation sealing and meeting the needs for cable insulation, on-site construction, and moisture and water resistance in storage.
Features
- After installation, it can form good moisture resistance, acid resistance, alkali resistance, ozone resistance and UV light
- Good weather resistance, ozone ageing, ultraviolet and salt mist corrosion resistance, performs stably under long-period exposure to the sun
- Easy to install, no special tools, no fire or heating required
- Standard color: black
Technical Performance
| Properties | Typical value | Test method |
| Hardness | 40±5ShoreA | ISO 48-4 |
| Tensile Strength | ≥7.0MPa | GB/T 528-2009 |
| Elongation | ＞800% | GB/T 528-2009 |
| Tear Strength | ≥25kN/m | ISO 34-1 |
| Breakdown Voltage | ≥20kV/mm | ASTM D149 |
| Volume Resistivity | ≥0.6*1015Ω.cm | IEC 60093 |

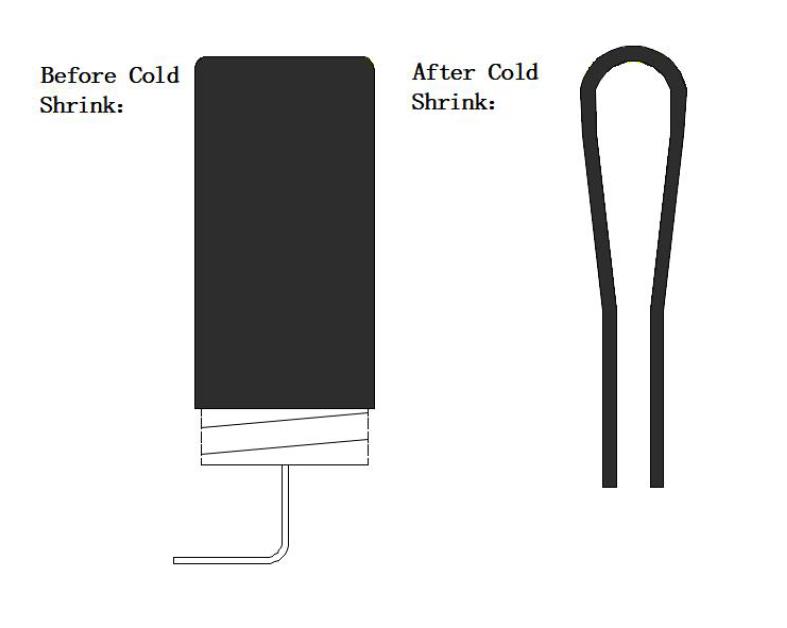

Structure
Dimension (The other sizes are available to custom on request)
| Size(mm) | Application Range | |
| Minimum cable size (mm) | Maximum cable size (mm) | |
| Φ40*100 | 10.0 | 32.0 |
