In modern 5G and LTE cell tower installations, field technicians frequently face a common hardware mismatch: connecting high-power 7/16 DIN or legacy N-type interfaces to compact, low-PIM 4.3-10 connectors and thin 1/2" flexible coaxial jumpers.

Because of the noticeable diameter difference between the bulky connector body and the slender jumper cable, technicians often ask: Can a single cold shrink sleeve reliably seal this entire uneven junction, or does it require auxiliary mastic tape?

With the right engineering design, a single Volsun® silicone cold shrink sleeve handles the entire transition with ease.

The Challenge of Mismatched RF Interfaces

Sealing mismatched RF connectors is inherently tricky for two reasons:

• Severe Outer Diameter Steps: A standard 7/16 DIN connector body or adapter has a significantly larger outer profile than a 1/2" superflexible coaxial jumper.

• The Risk of Loosening & Moisture Tracking: If an ordinary sleeve cannot shrink down far enough to grip the smaller cable jacket, moisture easily tracks through the gap under heavy rain and wind vibration.

Traditionally, tower crews had to wrap bulky layers of butyl mastic tape over the thinner section to build up the diameter before applying a weatherproofing boot. This extra step wastes valuable tower time and introduces human error.

How Volsun® Silicone Cold Shrink Solves Mismatched Geometries

Volsun®’s telecom-grade cold shrink series—specifically the RUBLS-SILIC silicone line—is purposefully engineered to overcome steep geometric variations in one seamless step:

• Ultra-High Expansion Ratio (Up to 5:1): Thanks to proprietary silicone elastomer compounding, Volsun RUBLS-SILIC sleeves offer an expansion ratio of up to 5:1. This wide range-taking capability allows the sleeve to easily slide over the widest 7/16 DIN coupling nut while still contracting down tightly over smaller 1/2" coaxial jumper jackets.

• Continuous Radial Pressure: Unlike tape that degrades or heat shrink that hardens, silicone cold shrink functions like an active rubber band. It applies constant radial tension across both the thick and thin ends of the transition, maintaining an IP68 watertight seal through relentless thermal cycling and tower swaying.

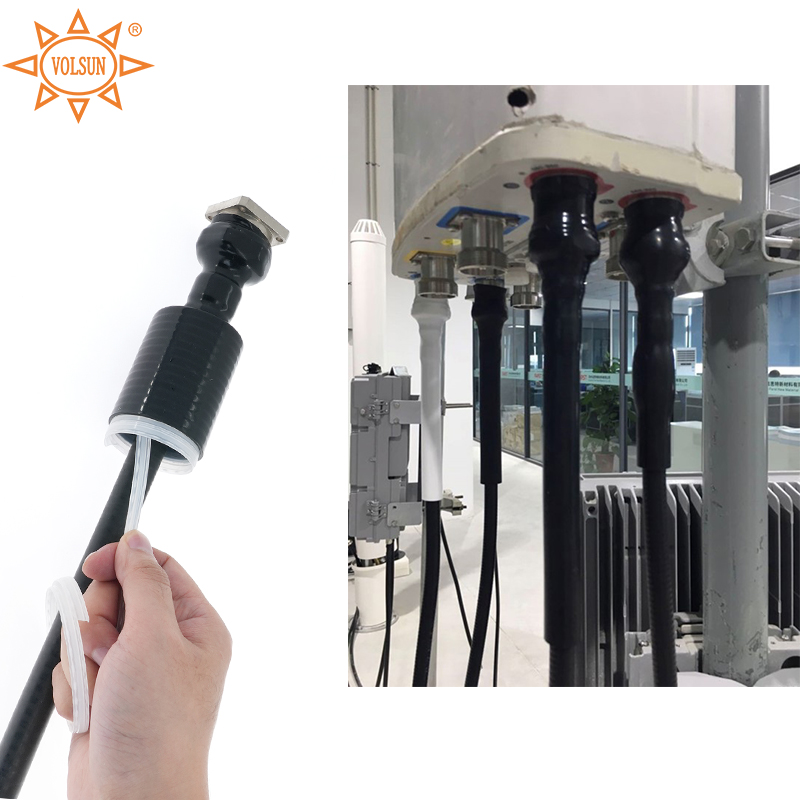

• Tool-Free, One-Handed Operation: Field climbers simply position the sleeve over the mated connector junction and pull out the internal spiral plastic core. The cold shrink tubing collapses instantly and uniformly in under 30 seconds—completely eliminating the need for torches, knives, or multi-layer tape buildup.

• Weather Durability: Designed for harsh outdoor environments, Volsun silicone cold shrink sleeves resist high UV exposure, ozone, and wide temperature swings.

• Streamline Your 5G Tower Deployments: You no longer need multi-layer tape buildup or multiple specialty sleeves to weatherproof mismatched RF connectors. A single, high-ratio Volsun® RUBLS-SILIC cold shrink tube provides a standardized, foolproof, and fully certified IP68 seal for 4.3-10, 7/16 DIN, and N-type transitions alike.

Upgrade your telecom weatherproofing solutions today.

Visit www.coldshrinktubing.com to request engineering samples, and discover how Volsun helps telecom operators and tower crews slash installation time!
