When upgrading telecom infrastructure to 4G, field engineers face a familiar headache: jumper cable connection failure. Connectors like N-type, DIN 7/16, and 4.3-10 DIN are constantly exposed to scorching sun, freezing cold, intense UV radiation, and heavy rain. Over time, traditional waterproofing methods like PVC tapes or heat shrink tubes can dry out, crack, or allow moisture to creep inside. Once water gets into a coaxial joint, signal loss and network downtime are inevitable.
The High-Altitude Installation Field Challenge
Installing cable protection on top of a 100-meter cell tower is tough work. Traditional heat shrink tubing requires field technicians to carry heavy battery packs or open-flame propane torches up the tower. Working with open flames in narrow, windy spaces is not only exhausting but also poses serious safety risks and can easily scorch nearby cable jackets.

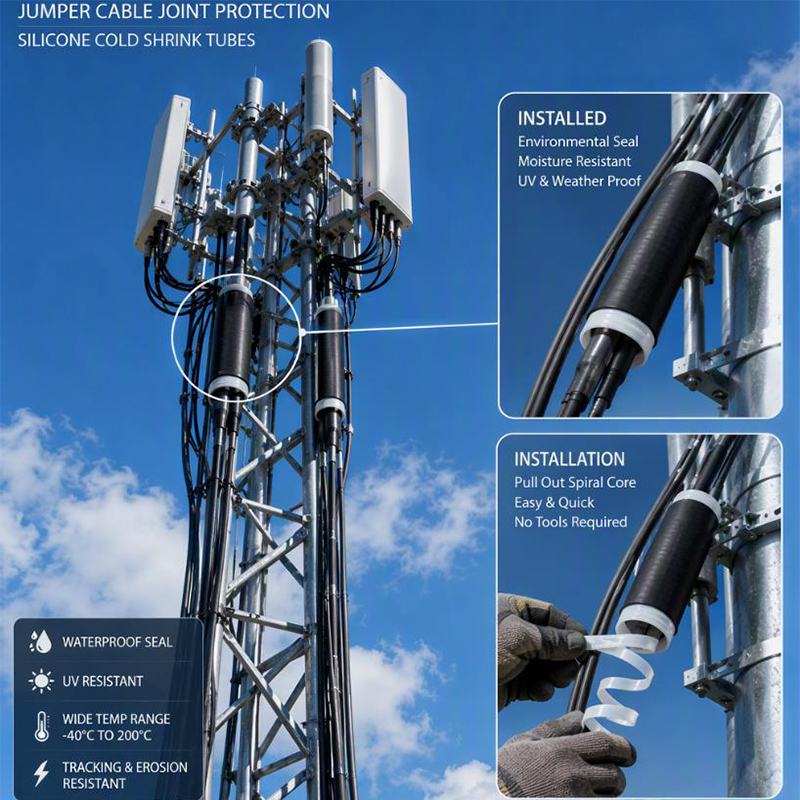

This is where cold shrink technology shines. Designed on a removable plastic core, a cold shrink sleeve is positioned over the connector joint and installed simply by pulling the core ribbon. In less than 30 seconds, without any heat source or special tools, the sleeve contracts uniformly to create an instant waterproof seal.
Engineering Breakthrough: 5:1 Shrink Ratio & All-Weather Endurance
Not all cold shrink sleeves are built equal. Standard cold shrink tubes often have a limited shrinkage range, meaning installation crews must carry multiple sizes for different cable transitions.

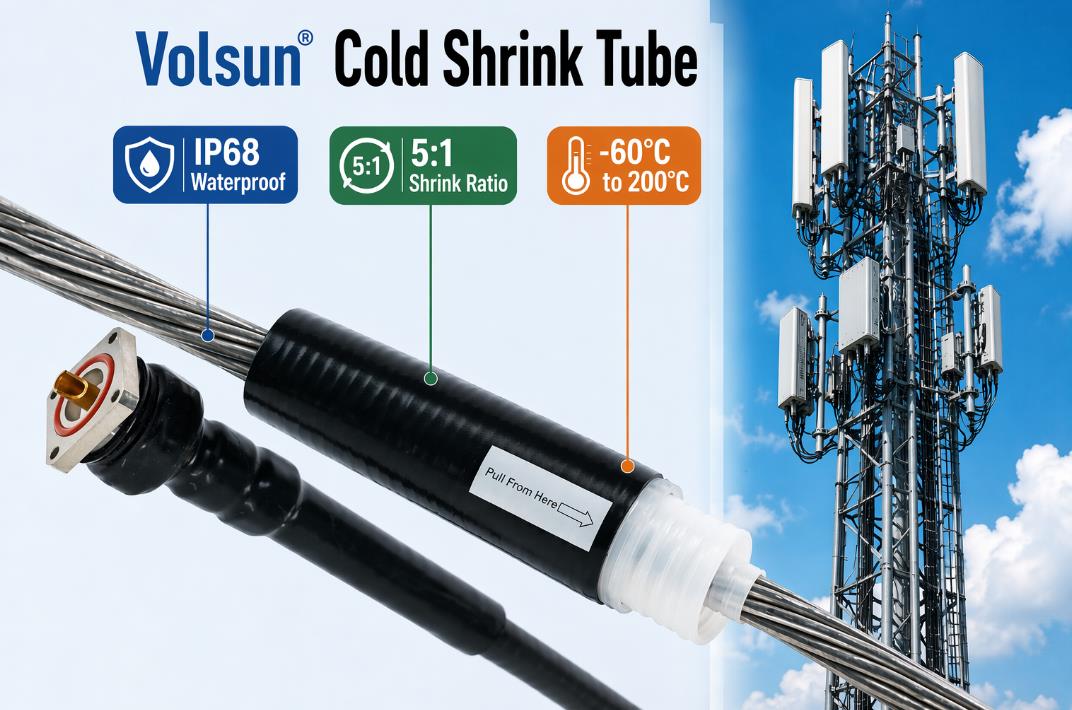

Volsun’s RUBLS-SILIC Silicone Cold Shrink Tube addresses this with a high 5:1 shrink ratio. With an elongation at break exceeding 800%, a single sleeve size can seamlessly accommodate wide diameter jumps—such as transitioning from a bulky connector shell down to a slender 1/2" jumper cable.
Made from high-grade silicone rubber, it delivers remarkable physical and environmental defense:
• Extreme Operating Temperature: Operates continuously from -60C to 200C, ensuring it won't harden in arctic freezes or soften in tropical heat.
• Superior Tear Strength: Boasting a tear strength of 50 kN/m, even if a small incision is accidentally made by a tool during installation, the cut will not expand under tension.
• Proven Weather Resistance: Certified to pass ASTM G154 UV exposure, ASTM D1149 ozone aging, and rigorous Damp Heat testing 85C and 85RH for 1,000 hours, guaranteeing IP68 waterproof integrity year after year.
Therefore, protecting 4G/5G network connections doesn't have to be complicated or high-maintenance. By utilizing 5:1 high-expansion silicone cold shrink tubing, telecom operators can eliminate fire hazards, speed up tower installations, and drastically reduce costly site visits for connection repairs.
Contact Volsun to get a special protection solution for your cell tower connectors.
