As solar power installations continue to expand across the Middle East, photovoltaic (PV) systems are expected to operate reliably under some of the world's most demanding outdoor conditions. High temperatures, intense UV radiation, dust, seasonal rain, and long-term exposure to the environment all place higher demands on cable connections—especially MC4 connectors, which are critical to the safety and efficiency of a solar system.
Recently, an EPC customer from Israel selected Volsun's silicone cold shrink tube for one of their photovoltaic projects, aiming to improve the sealing and long-term protection of MC4 connector connections.
Project Challenge

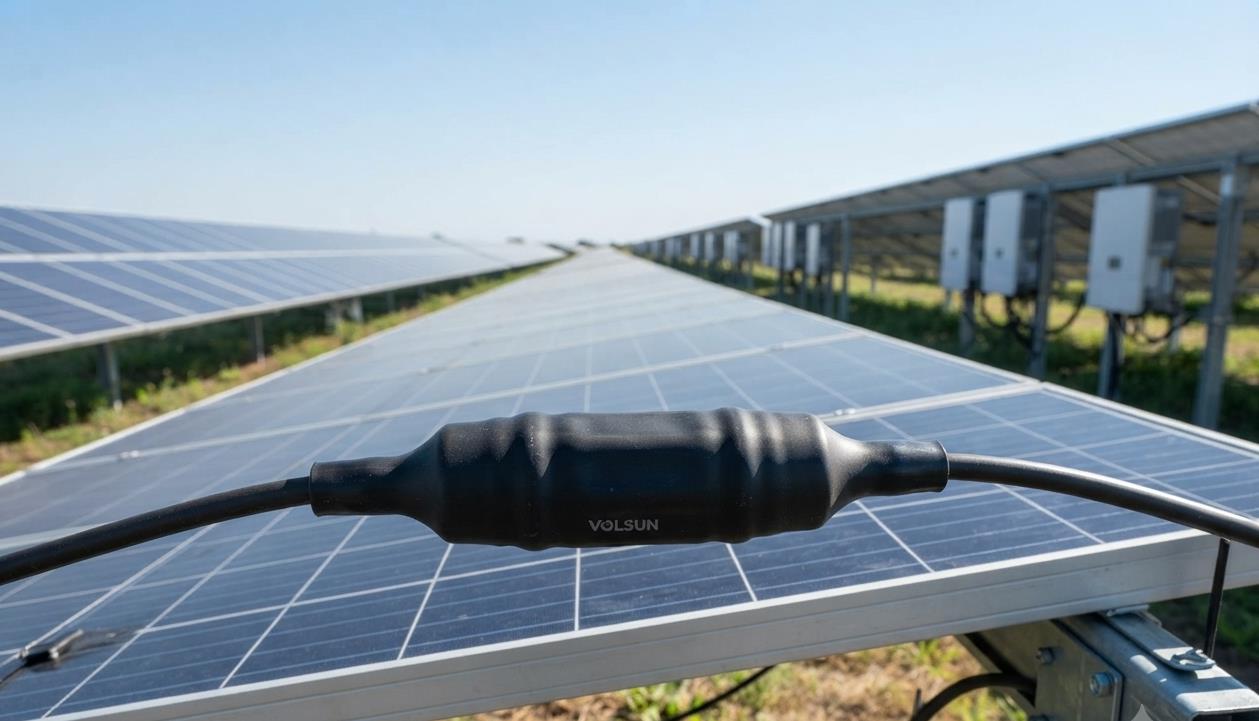

The customer was building an outdoor solar PV project where hundreds of MC4 connectors would remain exposed to the environment throughout the system's service life.
Although MC4 connectors are designed for outdoor use, the cable entry area remains a critical point that requires additional protection. If moisture, dust, or other contaminants penetrate the connection, they may increase maintenance requirements and affect the long-term reliability of the electrical system.
In addition, the installation team wanted a solution that could be applied quickly on site without using heating equipment, helping simplify field work while maintaining consistent sealing performance.
The Volsun Cold Shrink Tube Solution

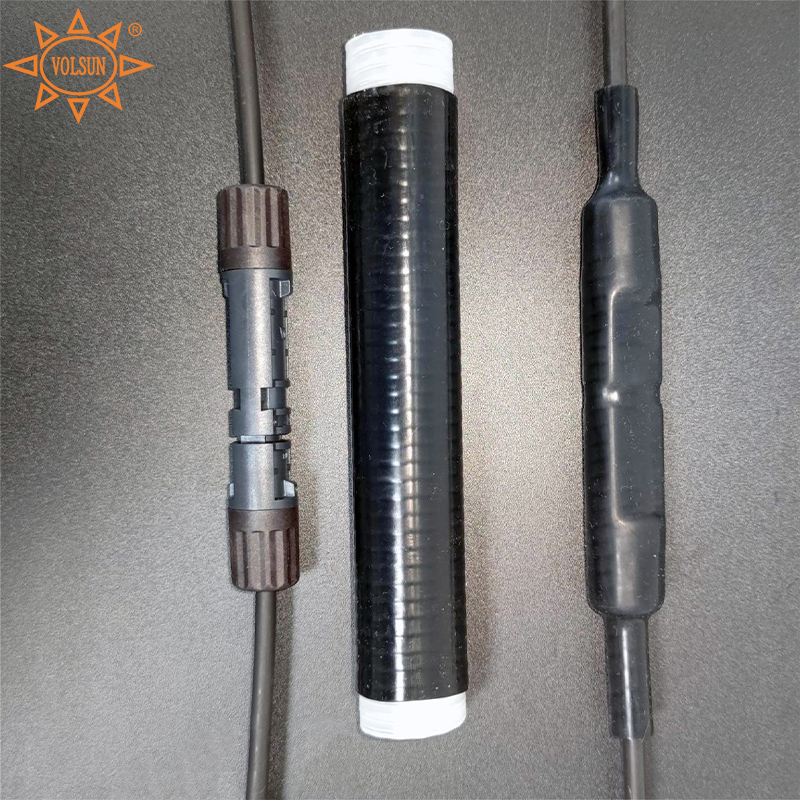

After reviewing the project requirements, Volsun recommended its VS-25×175 mm black silicone cold shrink tube, a model specially developed for photovoltaic connector applications. The tube is suitable for cable outer diameters from 6 mm to 20 mm, providing flexibility for common solar cable sizes used with MC4 connectors.
Unlike conventional heat shrink tubing, the silicone cold shrink tube is pre-expanded on a removable plastic support core. During installation, technicians simply position the tube over the connector and pull out the support core. The silicone material immediately contracts around the cable and connector, creating uniform radial pressure without requiring a heat gun or adhesive.
This installation method not only simplifies field operation but also helps achieve consistent sealing quality across large-scale solar installations.
Designed for Harsh Outdoor Environments
Outdoor photovoltaic systems often operate continuously for more than twenty years, making environmental resistance an important consideration when selecting cable protection products.
Volsun's silicone cold shrink tube offers several features that match these demanding conditions, including:
- Continuous operating temperature from -55°C to 180°C
- High expansion ratio, allowing one size to fit a wide range of cable diameters
- Excellent resistance to ultraviolet radiation, ozone aging, and salt mist
- Reliable sealing against moisture, dust, and water ingress
- No heating tools required during installation
For EPC contractors and solar installers managing large numbers of cable connections, a simple and reliable installation process can help improve construction efficiency and support consistent project quality.
Why More Solar Projects Are Choosing Cold Shrink Technology
As photovoltaic systems continue to grow in scale, installers are placing greater emphasis not only on connector performance but also on installation efficiency and long-term maintenance.
Compared with traditional heat shrink solutions, silicone cold shrink technology offers several practical advantages:
- Faster installation without heating equipment
- Consistent sealing pressure around the connector
- Excellent adaptability to outdoor environments
- Long-term flexibility without becoming brittle over time
- Reduced dependence on installation tools
Looking for a Reliable MC4 Connector Sealing Solution?
Volsun has been developing insulation and sealing solutions for demanding industrial applications for nearly two decades. Our silicone cold shrink tubes are widely used in photovoltaic systems, telecommunications, power distribution, and other outdoor electrical applications.
Contact Volsun today to request samples or discuss your next solar project.
