In modern power distribution systems, reliability is closely connected to maintenance efficiency. Utilities and electrical contractors are under constant pressure to reduce outages, shorten repair time, and lower long-term operating costs. While major equipment often receives the most attention, many unexpected failures actually begin at smaller connection points exposed to outdoor environments.


Overhead line clamps, jumper connections, exposed conductors, and switchgear connection areas are all vulnerable to moisture intrusion, insulation aging, and environmental damage. Once these areas begin to deteriorate, the result can be power leakage, insulation failure, corrosion, or even unexpected shutdowns.

For maintenance teams, the challenge is not only repairing these problems, but preventing them from happening repeatedly.

This is one reason why self-curing insulation waterproof protection materials are becoming increasingly important in power distribution maintenance work.

Unlike conventional electrical tape solutions that mainly provide temporary surface wrapping, self-curing materials create a more integrated protective structure around irregular electrical components. After exposure to moisture in the air, the material gradually cures and forms a durable insulation and waterproof layer directly on the protected area.

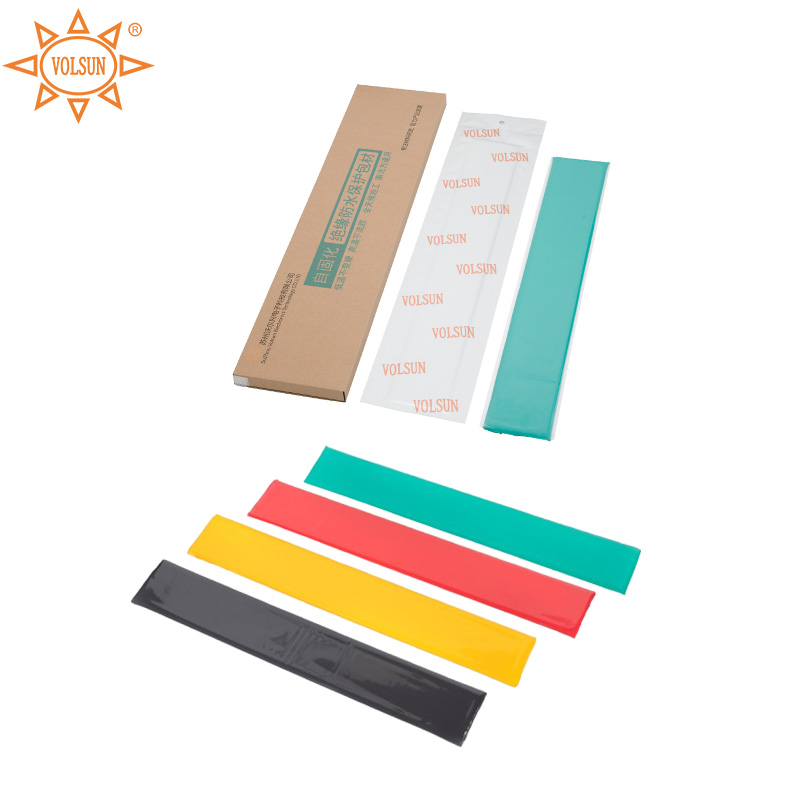

Volsun FST6525 Self-Curing Insulation & Waterproof Protection Pad is designed specifically for this type of field application. The material combines electrical insulation, waterproof sealing, UV resistance, and easy installation into a single solution suitable for complex outdoor environments.

One major advantage from a maintenance perspective is adaptability.

In real-world power distribution systems, many connection points are irregular in shape and difficult to protect using standard insulation methods. Traditional heat shrink tubing may require disassembly or enough cable space for installation, while ordinary tape often struggles to maintain long-term sealing performance on uneven surfaces.

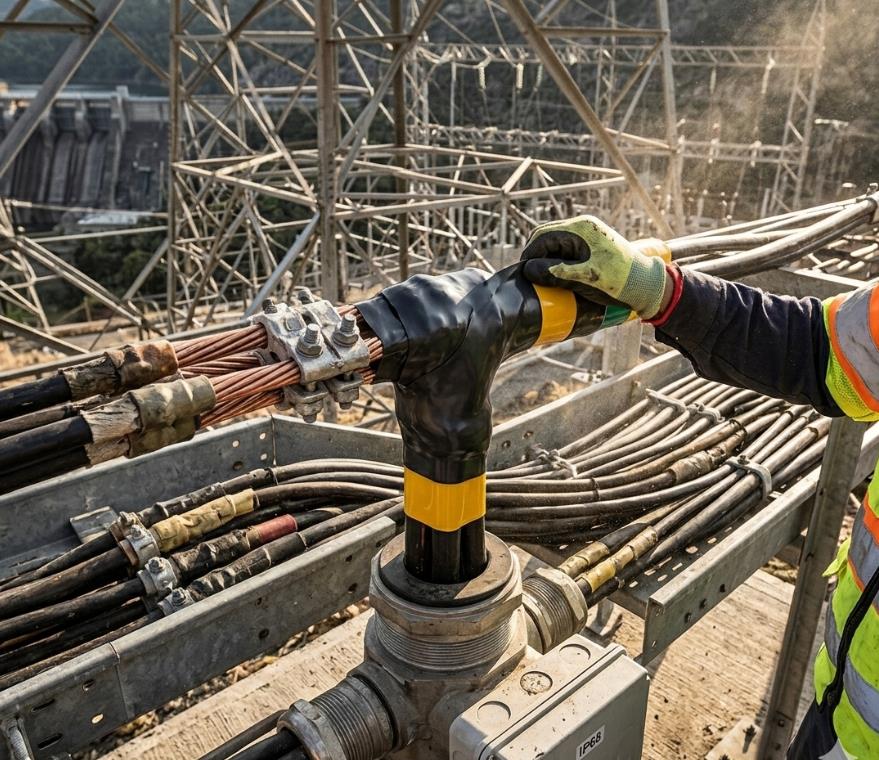

Volsun self-curing protection pad material solves this problem by allowing technicians to directly wrap and compress the material around irregular structures such as line clamps, jumper wires, exposed busbars, and branching connections. The material can also be cut and shaped on site according to actual installation conditions, greatly improving repair flexibility.

This becomes especially valuable during emergency maintenance operations.

In many outdoor repair scenarios, time is critical. Waiting for heating equipment, preparing complex installation tools, or performing lengthy installation procedures can increase downtime and labor costs. Since FST6525 does not require flame heating or specialized tools, maintenance crews can complete protection work much faster, particularly during elevated or difficult-access operations.

Another important factor affecting maintenance cost is long-term durability.

Outdoor electrical systems face continuous exposure to rain, UV radiation, humidity, dust, and temperature fluctuations. If the protective material begins to crack, loosen, or lose adhesion over time, repeated maintenance becomes unavoidable.

According to Volsun’s technical data, self-curing protection pad achieves IP68 waterproof protection and maintains strong dielectric performance after UV accelerated aging testing. The material also remains stable under both low-temperature and high-temperature conditions, helping reduce the risk of environmental aging failure.

Its cured breakdown voltage reaches ≥30kV, providing reliable insulation performance for outdoor electrical applications.

For utility companies and contractors managing large-scale distribution networks, reducing repeated maintenance work can create significant long-term savings. Fewer failures mean lower labor costs, fewer service interruptions, and improved operational reliability across the entire system.

As electrical infrastructure continues expanding into renewable energy, smart grid systems, and distributed outdoor networks, maintenance efficiency is becoming just as important as initial installation performance.

Self-curing insulation waterproof materials like Volsun FST6525 provide a practical solution for improving protection reliability while simplifying field maintenance operations. Instead of relying on temporary fixes that require frequent replacement, maintenance teams can achieve more durable protection for complex electrical connection points exposed to demanding outdoor environments.
