Motor bearings may fail repeatedly in VFD-driven systems because replacing the bearing does not eliminate the electrical cause of the damage. Shaft voltage and stray current can still discharge through the new bearing unless a proper grounding path is provided.


A Common Maintenance Frustration

In many industrial facilities, technicians replace a failed motor bearing expecting the problem to be resolved. However, the new bearing sometimes fails again after only a short period of operation. This repeated failure can be confusing and costly.
The reason often lies in electrical bearing damage rather than mechanical wear.

The Role of Shaft Voltage

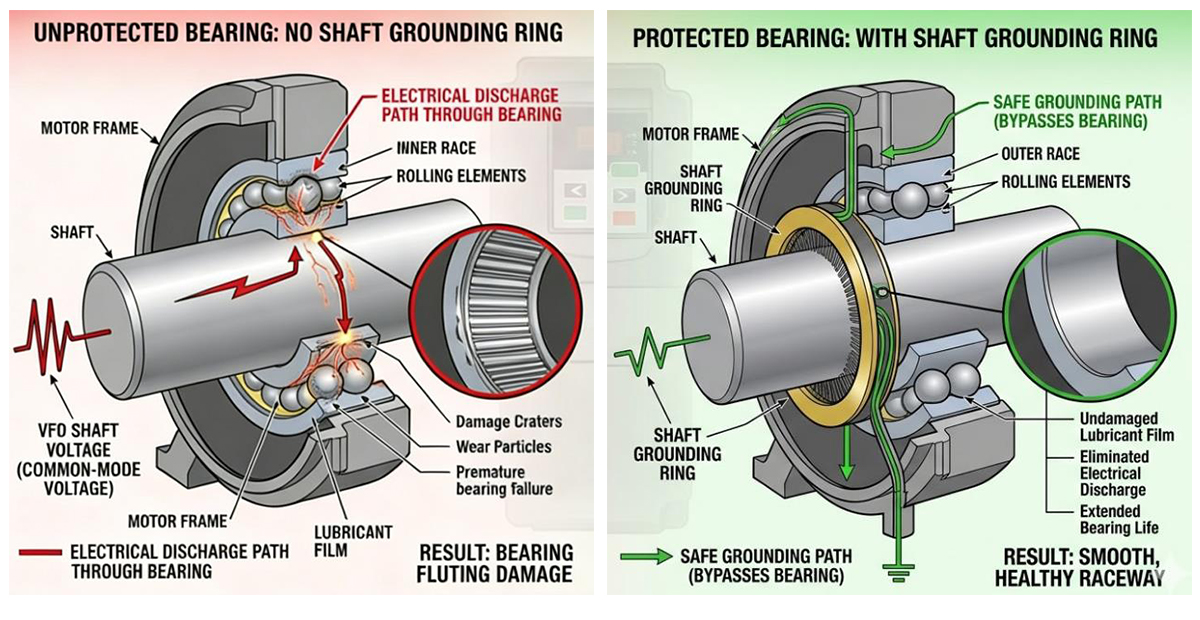

Variable Frequency Drives generate high-frequency switching voltages that can induce electrical potential on the motor shaft. This voltage must eventually discharge to ground. If no dedicated grounding path exists, the current often flows through the motor bearing. Each discharge damages the metal surface inside the bearing.

Why New Bearings Fail Again

When a damaged bearing is replaced, the electrical environment inside the motor remains unchanged. The shaft voltage continues to build during operation. Because the new bearing occupies the same location, it becomes the electrical discharge path again. As a result, the same damage process repeats.

Addressing the Root Cause

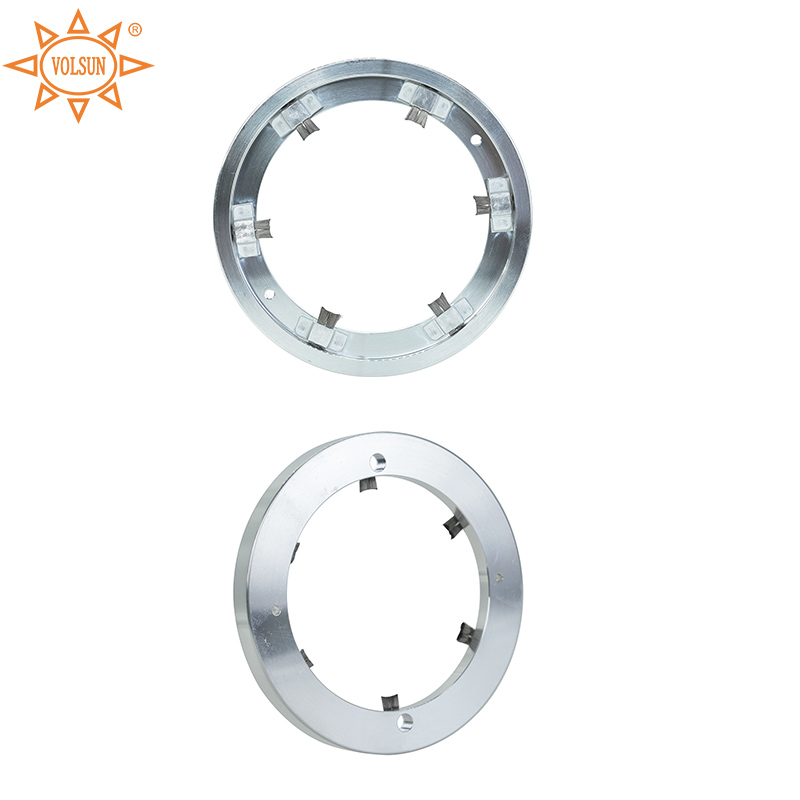

To stop repeated failures, engineers must eliminate the electrical discharge path through the bearing. A shaft grounding ring provides an alternative route for stray current. By safely transferring electrical charge from the shaft to the motor frame, the ring prevents current from passing through the bearing.

Moving from Reactive to Preventive Maintenance

Instead of repeatedly replacing damaged bearings, addressing the electrical cause can significantly improve motor reliability. For many VFD-driven systems, installing a shaft grounding ring is a practical solution that protects bearings and reduces maintenance costs.

FAQ

1. Why do VFD systems cause repeated bearing failures?

Because shaft voltage can discharge through the bearings if no grounding path is provided.

2. Will insulated bearings solve the problem?

They can block current flow but may not eliminate shaft voltage entirely.

3. What is a common preventive solution?

Installing a shaft grounding ring to redirect stray electrical current.
