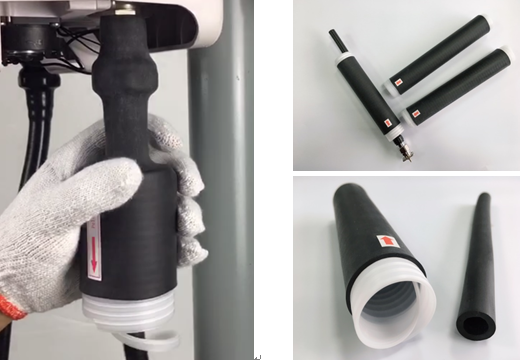

Volsun EPDM cold shrink tube can replace 3m 8420 series cold shrink tubes. It is kind of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core.
They are supplied for field installation in this pre-stretched condition.
The core is removed after the tube has been positioned for installation over an in line connection, terminal lug, etc., allowing the tube to shrink and form a waterproof seal.
The insulating tube is made of EPDM rubber, which contains no chlorides or sulphurs. Various diameter sizes will cover a range of 1000 volt cables, copper and aluminum conductors.
The application range of epdm cold shrink tube is wide. They can be used for indoor or outdoor, overhead or underground. Also, they are primary electrical insulation for all solid dielectric (rubber and plastic) insulated
wire and cable splices rated to 1000volts. Relocation of service; Dig-in repairs, sheath repairs; Insulation of inline conductor transition connectors, etc.

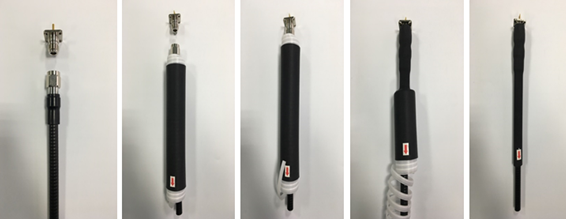

It is easy to install and remove, we will show you the installation steps as follows:
First, clean the dust of connector
Then, put on cold shrink tube
Third, install the connector
Then, pull off the supporting core
Last, installation finished
