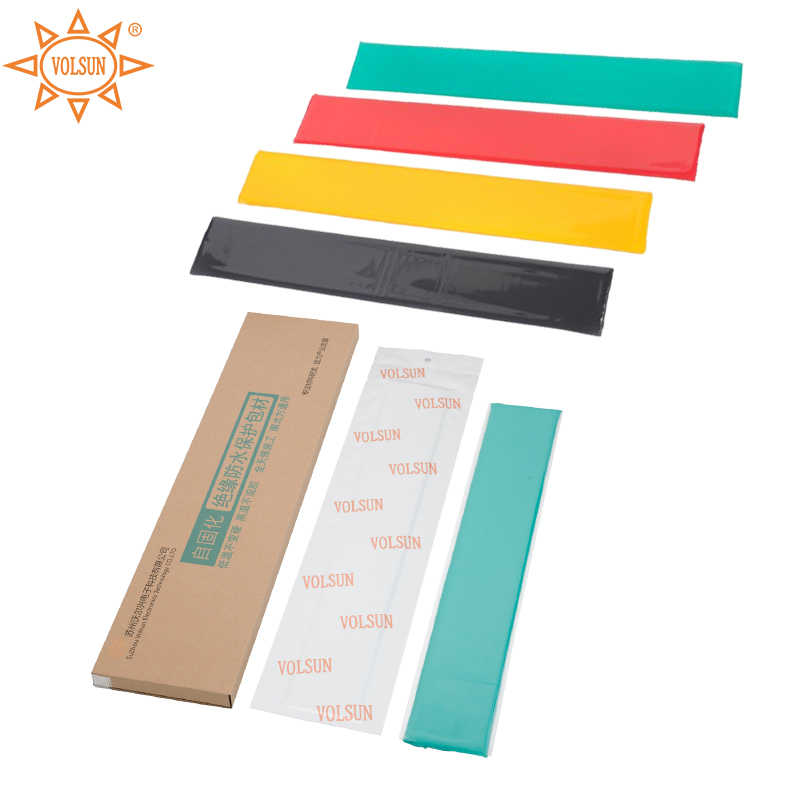

Learn more about Volsun self-curing insulation waterproof protection material pad, get a insulation sealing solution for your electric joints.


Q1. What is a self-curing insulation waterproof protection pad?

A self-curing protection pad is a flexible insulation material that gradually cures after exposure to moisture in the air, forming a durable waterproof and electrical insulation layer around irregular electrical connections.


Q2. What applications is FST6525 suitable for?

FST6525 is widely used for overhead line clamps, jumper connections, switchgear insulation, telecom base stations, antennas, splitters, and other irregular electrical components requiring waterproof protection.


Q3. How does the self-curing process work?

After the vacuum package is opened, the material reacts with moisture in the air and gradually cures into a solid protective layer without requiring heat or special equipment.


Q4. Does the product require a heat gun during installation?

No. FST6525 can be directly wrapped and compressed by hand. No heating tools, flames, or specialized installation equipment are needed.


Q5. Is the material suitable for outdoor environments?

Yes. The product offers excellent UV aging resistance, waterproof sealing, and temperature stability, making it suitable for long-term outdoor electrical protection.


Q6. What waterproof rating does FST6525 achieve?

FST6525 provides IP68 waterproof protection when properly installed, helping prevent moisture ingress in outdoor electrical systems.


Q7. Can the material be used on irregular shapes?

Yes. One of the biggest advantages of FST6525 is its ability to conform closely to uneven and irregular structures such as clamps, branch connections, and exposed metal parts.


Q8. What is the dielectric strength of the material?

According to Volsun technical data, the cured material provides breakdown voltage performance of ≥30kV.


Q9. How long can the material remain usable after opening the package?

The recommended installation time after opening the vacuum package is within 60 minutes under temperatures below 30°C.


Q10. Is the product flame retardant?

Yes. FST6525 achieves a V-0 flame-retardant rating, helping improve electrical safety performance.


Q11. Can FST6525 replace traditional electrical tape?

In many outdoor insulation and waterproof applications, FST6525 provides more reliable long-term sealing performance compared to ordinary electrical tape.


Q12. Is FST6525 comparable to 3M™ 525W?

Yes. FST6525 is designed as a cost-effective alternative solution for applications similar to 3M™ 525W insulation waterproof protection materials.
