MS-VLA MS-VLA(C)
AMS-Military Grade Heat Shrinkable Wire Identification Sleeves
【Description】MSVLA series is the military grade cable and wire identification sleeves, which is made of cross-linked environmentally friendly polyolefin bombarded by high-power electron beam with electronic accelerators to meet requirements of high end markets where highly reliable cable& wire identification is required. It accords to Classes 1 and 3 of AMS-DTL-23053/5 half-hard high molecular materials. For this product, both 2:1 and 3:1 shrink ratio are available on your request.
【Features】
● Military grade, lightweight, well suited for aerospace vehicles, tank, and submarines identification purposes
● High temperature resistant(temperature rating 135°C/275°F)
● Highly flame retardant, VW-1
● RoHS compliant
● Highly reliable and permanent identification
● Thermo-sensitive, quick recovery
● Computer-printable, any characters and logo are easy to design
【Rated Temperature】
- Continuous operating temperature: -55°C~135°C/-67°F~275°F
- Min. shrink temperature: 85°C/185°F
- Full recovery temperature: 115°C~200°C/239°F~392°F, 8~3minutes
- Max. storage and transportation temperature: ≤+50°C/122°F
【Standards】
- Meets AMS-DTL-23053/5, compatibility: UL224
- Color code soundness: SAE-AS 81531 and MIL-STD-202F/215J

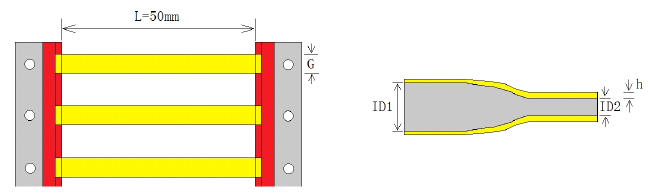

【Structure】
【Dimensions】

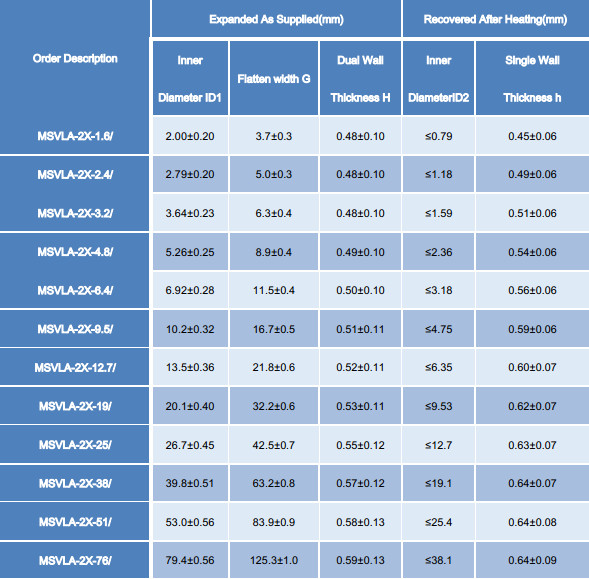

Shrink Ratio 2:1

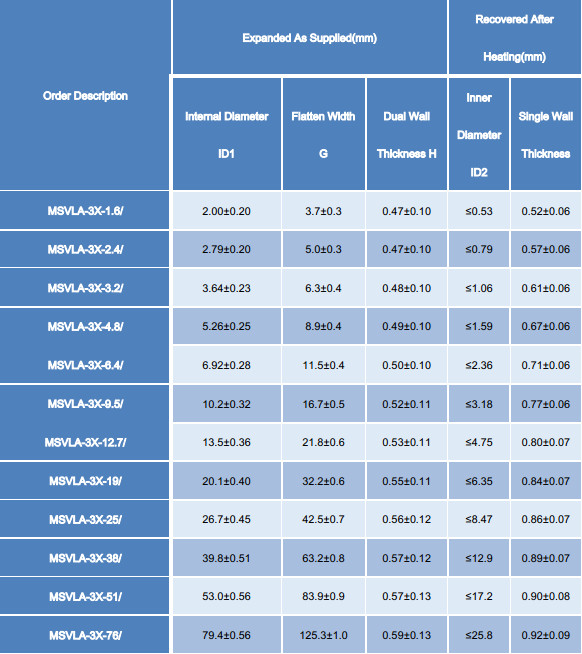

Shrink Ratio 3:1

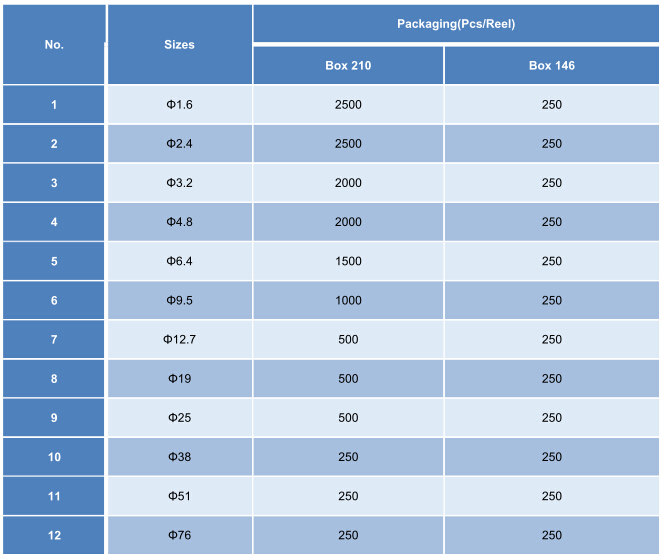

【Standard Package Data】

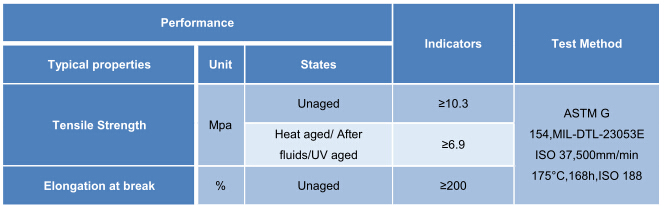

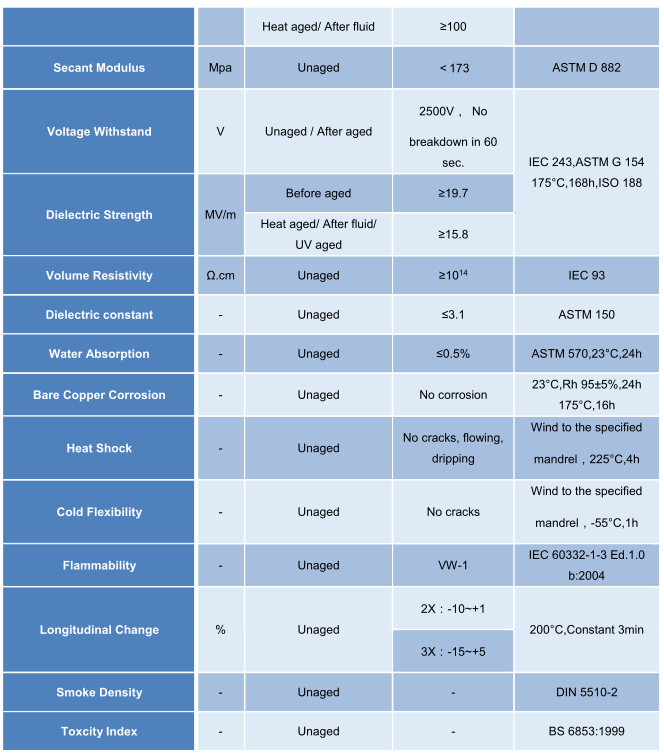

【Technical Performance】
