SBRS-VBK
Semi-Rigid Adhesive Lined Heat Shrink Tubing

【Description】
    SBRS-VBK is a dual-wall, heat shrinkable tubing designed to provide moisture proof encapsulation of an electrical splice in an automotive environment.Moisture may enter a splice area directly or indirectly via a capillary action between individual wires, thus causing corrosion.The tubing is centered over the splice area and on heating the adhesive melts and is squeezed around where the wires are crimped or welded and between the conductors,by the shrinking action of the sleeve. The installed product provides low profile mechanical protection against flexing, abrasion and cut-through as well as electrical insulation.The jacket is flame-retarded.

【Features】

• Semi rigid
• High performance adhesive
• Designed for wire harnesses/splices
• Excellent mechanical properties
• Operating temp.: -35°C ~+125°C
• Min. shrink temp.: 110°C
• Min. fully recovery temp.: 135°C
• Shrink ratio: 4:1
• RoHS compliant
• Standard color: Black .Clear (Non-Flame retardant)

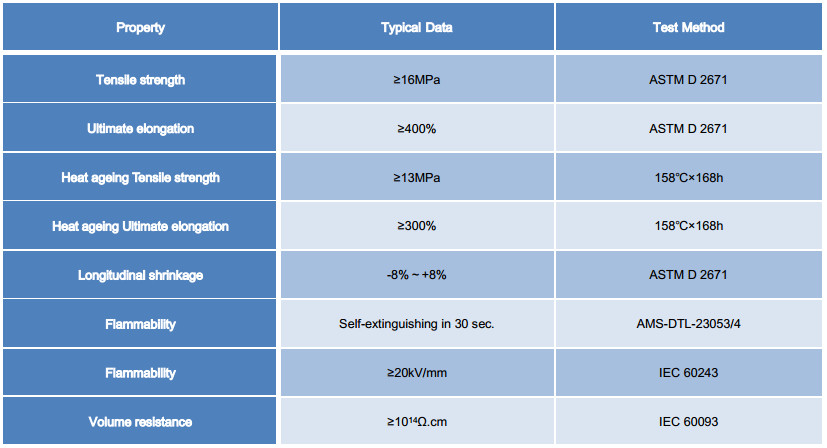

【Technical Performance】

【Structure】

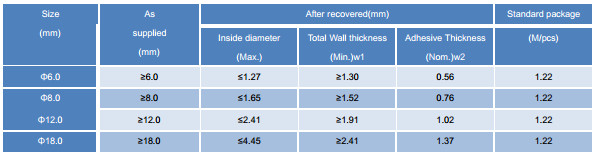

【Dimensions】
