SBRS-135G(3X)(4X)GF
Military Grade Highly Flame Retardant Adhesive-lined Heat Shrink Tubing

Description

  SBRS-135G (3X)(4X)GF is a cross-linked polyolefin tube that is extruded with an inner layer of adhesive.The inner layer of adhesive, with superior sealing capability, is also a buffer against mechanical strain.Dual wall heat shrink tubing is designed to provide superior sealing against water,corrosive gas and chemicals.Typical applications include environmental sealing of in-line splices,sealing and strain relief of connectors and terminals,abrasion protection and electrical insulation of automotive wiring harness splices and valuable components, fleet & marine sealing & protection and wire bundling etc.




Features

  • Standard: AMS-DTL-23053/4 UL 224
  • Shrink ratio:3:1,4:1
  • High flame retardant, environment friendly, UV resistant
  • Shrink temperature:70°C ~125°C
  • Continuous operating temperature:-45°C ~135°C
  • RoHS compliant
  • Standard color: Black outside. White inside

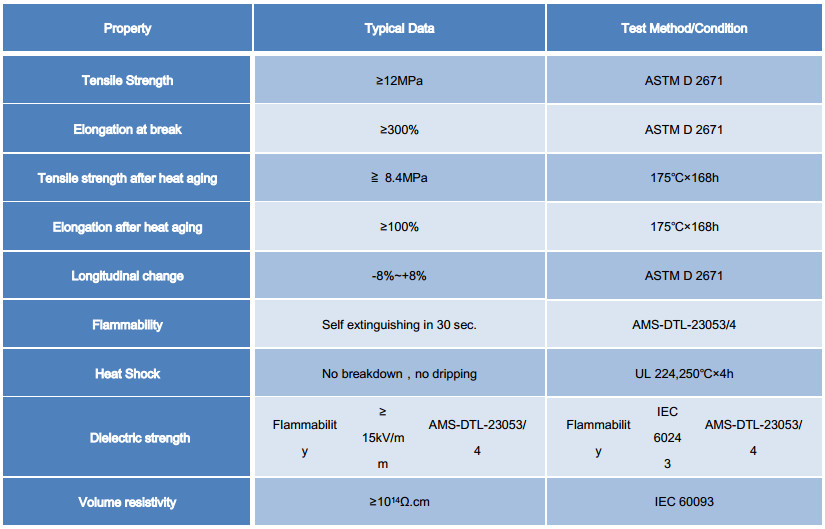

Technical Performance



Structure



Dimensions

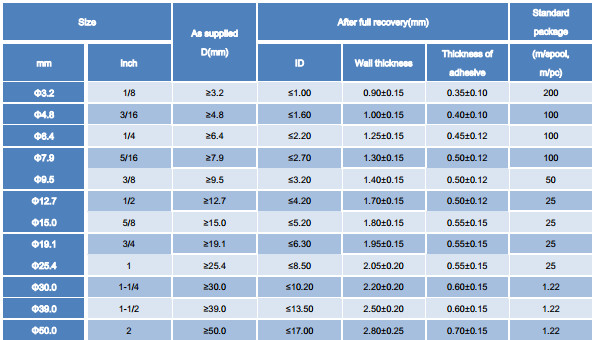

Shrink Ratio:3:1

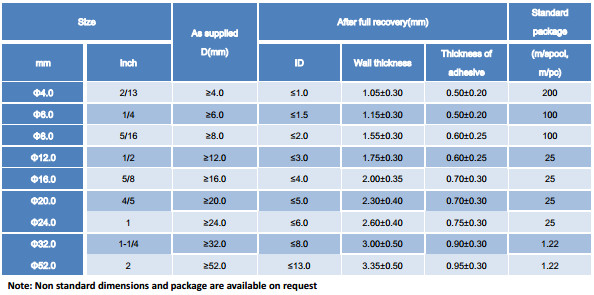

Shrink Ratio:4:1
