SBRS-125H(3X)
Halogen-free Adhesive-lined Dual Wall Heat Shrink Tubing
.jpg)
【Description】
SBRS-125H (3X) is a cross-linked polyolefin tube that is extruded with an inner layer of adhesive. The inner layer of adhesive, with superior sealing capability, is also a buffer against mechanical strain. Dual wall heat shrink tubing is designed to provide superior sealing against water, corrosive gas and chemicals. Typical applications
include environmental sealing of in-line splices, sealing and strain relief of connectors and terminals, abrasion protection and electrical insulation of automotive wiring harness splices and valuable components, fleet & marine sealing & protection and wire bundling etc.
【Features】
- Shrink ratio:3:1
- Flame retardant outer layer, halogen free, UV resistant
- Shrink temperature:70°C~125°C
- Continuous operating temperature:-45°C ~125°C
- RoHS compliant
- Standard colors: Black. More colors are available upon request.

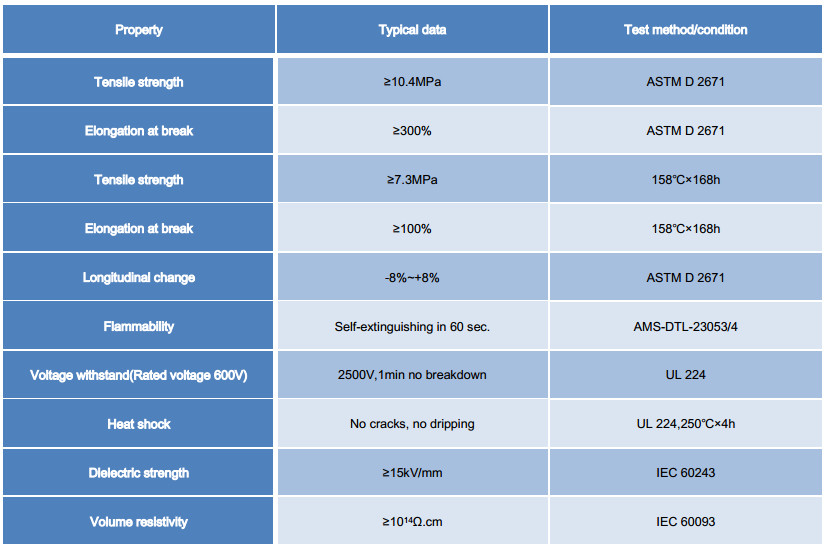

【Technical Performance】
【Structure】

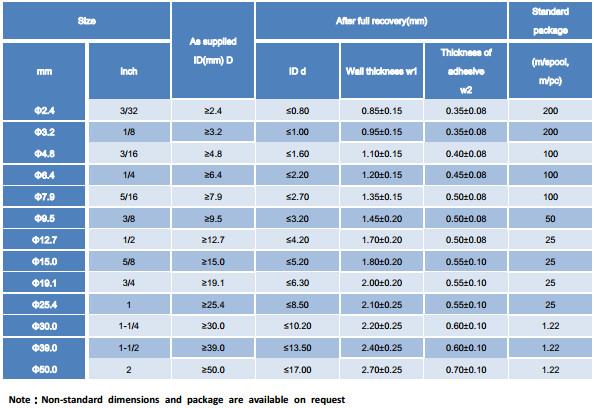

【Dimensions】
