SBRS-125(3X)LS
Low Temperature Thick Adhesive-lined Dual Wall Heat Shrink Tubing

Low Temperature Thick Adhesive-lined Dual Wall Heat Shrink TubingDescription

SBRS-125G(3X) LS is a cross-linked polyolefin tube that is extruded with an inner layer of adhesive.The inner layer of adhesive, with superior sealing capability, is also a buffer against mechanical strain.Dual wall heat shrink tubing is designed to provide superior sealing against water,corrosive gas and chemicals. Typical applications include environmental sealing of in-line splices, sealing and strain relief of connectors and terminals,abrasion protection and electrical insulation of automotive wiring harness splices and valuable components, fleet & marine sealing & protection and wire bundling etc.



Features

  • Shrink ratio:3:1
  • Flexible, flame retardant outer layer, environmentally friendly, low temperature shrinkable, UV resistant
  • Shrink temperature:60°C ~105°C
  • Continuous operating temperature:-45°C ~125°C
  • RoHS compliant
  • Standard colors: Black. More colors are available upon request.

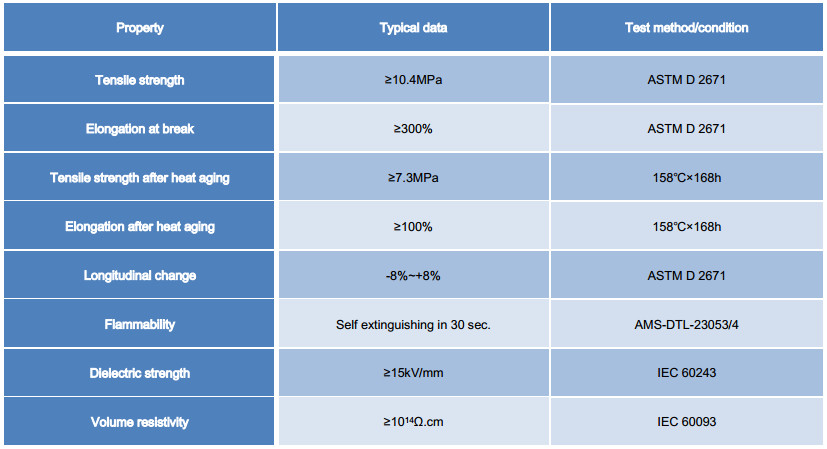

Technical Performance

Low Temperature Thick Adhesive-lined Dual Wall Heat Shrink Tubing



Structure



Low Temperature Thick Adhesive-lined Dual Wall Heat Shrink Tubing

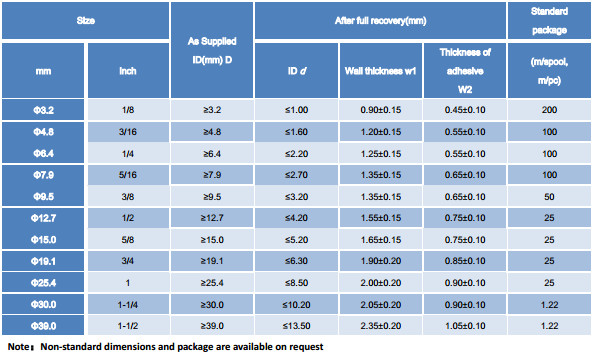

Dimensions
