 RUBNS-OLC

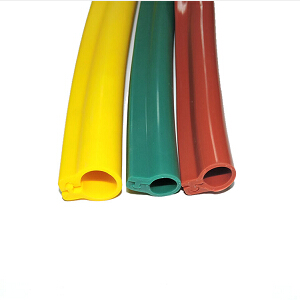

 Silicon Rubber Overhead Electrical Line Cover

Silicon Rubber Overhead Line CoverDescription

 RUBNS-OLC The innovative product design, ease of installation. Use silicon rubber material, anti-aging, corrosion resistance, with good resistance to corona resistance, high temperature performance, especially suitable for the protection of the bare wire. Widely used in substation protection works and railway catenary system, a significant effect in the cross-lines.



Technical Performance



Silicon Rubber Overhead Line Cover




 【Structure

Silicon Rubber Overhead Line Cover


Dimensions





Voltage-Ratings/Wall





Application Cases





Installation Instructions


  • Clean the inside of the RUBNS-OLC with cleaning cloth and alcohol fluids until the inside is

clean without dust;

  • Connect the pointed plastic mouth to the body of RTV silicone rubber adhesive bottle. See illustration 1 above.


  • Smear RTV silicone rubber adhesive all over the concave channel of the RUBNS-OLC
uniformly as showed in illustration 2 above;
  • Uniformly smear the two flat fringes of the concave channel with RTV silicone
rubber adhesive as the illustration 3 shows.



  • Connect the bulging part of the RUBNS-OLC on one side into the concave channel of the
other side and squeeze the connecting part from one end to the other as illustration 4 indicates;
