Cold Shrink Coax Connector Sealing Kits VL-KC Series
【Description】Cold Shrink Sealing Kits VL-KC Series provide the correct Cold Shrink tube for the correct Cold Shrink tube and special foam to make the installation of coax connector seals easy. The installation does not require tooling, and the quality of the installation is less installer dependent.
【Features】
- Excellent weather resistance, ultraviolet aging resistance and higher embrittlement resistance than heat shrink tubing
- More resistant to slab and prick, abrasion, acid and alkali than silicone cold shrink tubing
- Simultaneously expands and shrinks with work pieces without clearances, seals tight in harsh environment
- Stably sealing the work pieces in windy environment
- Well suited for cable less than 1KV
- Seals tight, retains its resiliency and pressure even after prolonged years of ageing and exposure.
- Simple , safe installation, requires no tools or special training. No torches or heat work required.
- Sealing class IP67

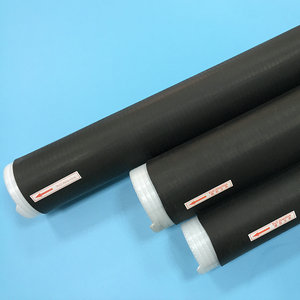

The outer Cold Shrink tube is made from UV resistant EPDM or Silicone rubber material to provide an
excellent seal on the connector. In cases where the different coax cable diameter can not be covered with
the tube application range, a special foam is used to increase the smallest cable diameter to fit the shrink
performance of the Cold Shrink tube. The kits passed the .5 bares water pressure sealing test and met IEC 529 IP 67.

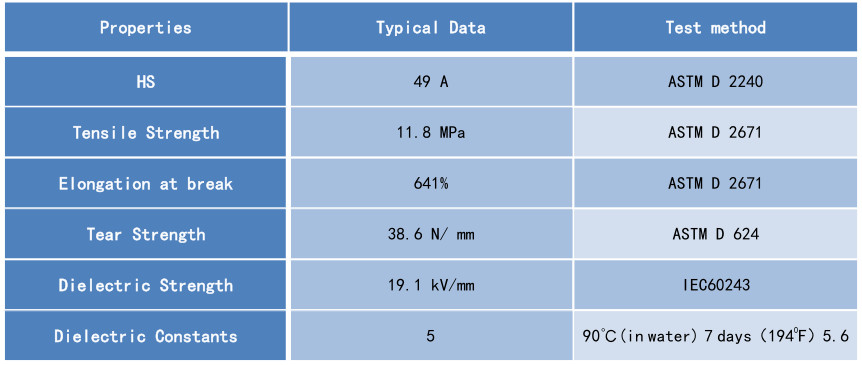

【Technical Data】
【Application】

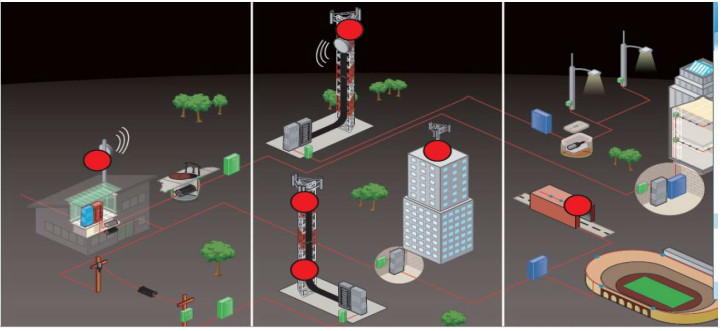

The main application is the sealing of coax connectors used in the wireless communication antenna market. These mainly outside installed connectors require an extra sealing. Up until now, sealing tapes or Heat Shrink tubes were used.

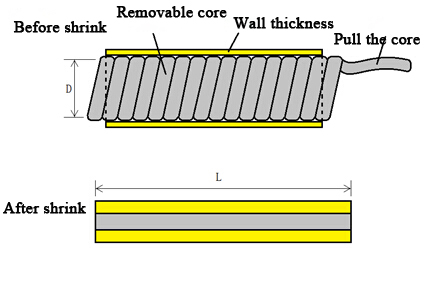

【Structure】

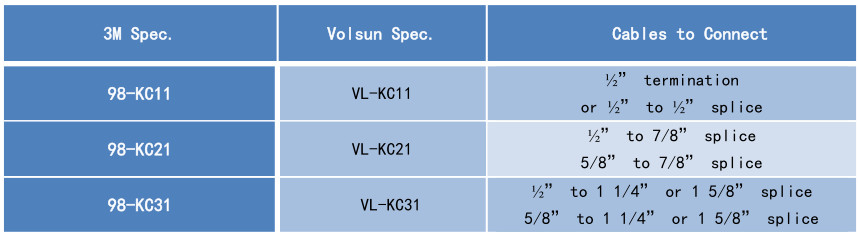

【Application Chart】
